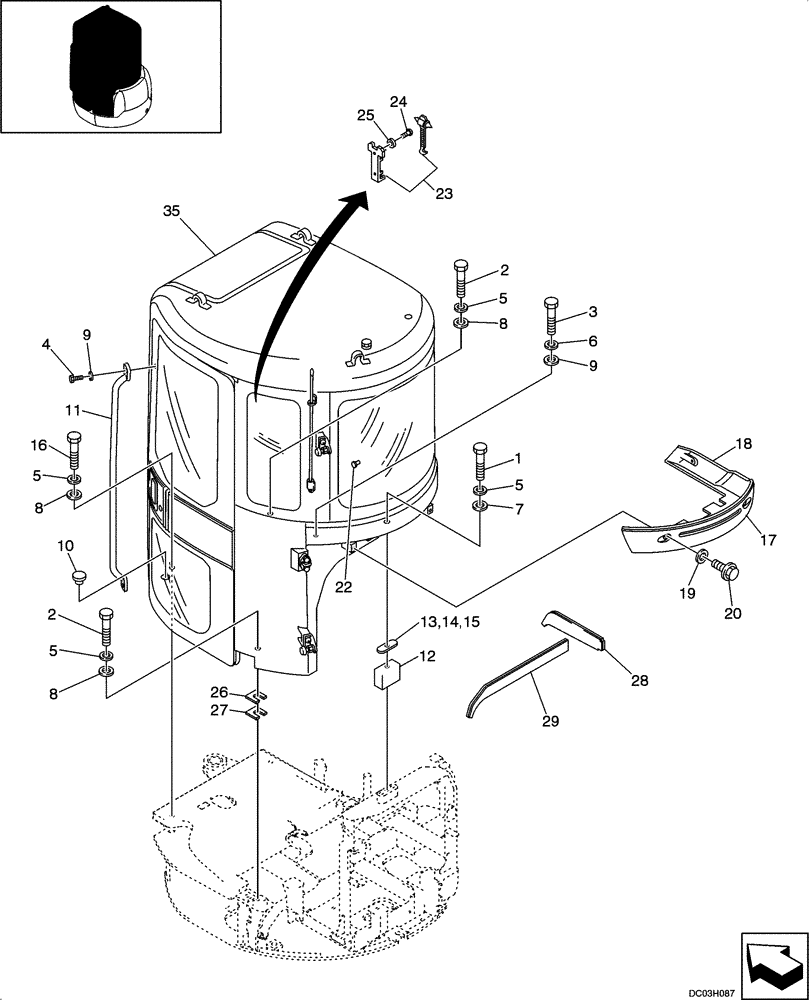

Запчасти Case CX25 (09-20[00]) - CAB MOUNTING (09) - CHASSIS/ATTACHMENTS

1

ZS18C16140

SCREW,Hex, M16 x 140mm

CAPSCREW

1шт.

2

ZS18C16050

SCREW,Hex, M16 x 50mm

2шт.

3

ZS18C10030

SCREW,Hex, M10 x 30mm

1шт.

4

YR02C01571D2

SCREW

2шт.

5

ZW26X16000

LOCK WASHER

4шт.

6

ZW26X10000

LOCK WASHER

1шт.

7

YJ03M01031P1

WASHER

1шт.

8

ZW16H16000

WASHER

3шт.

9

ZW16H10000

WASHER

3шт.

10

YR02C01597P1

PLUG

1шт.

11

PM41C00015P1

HANDRAIL

1шт.

13

PW02C01008D1

SHIM,1.6mm Thk

1шт.

14

PW02C01008D2

SHIM,2.3mm Thk

1шт.

15

PW02C01008D3

SHIM,3.2mm Thk

1шт.

16

ZS18C16085

SCREW,Hex, M16 x 85mm

1шт.

17

PW02C01027D2

COVER

COVER

1шт.

18

PM21C01152DU

WEATHERSEAL STRIP

1шт.

19

2420T4505

WASHER,7mm ID x 16mm OD x 1mm Thk

3шт.

20

ZM46C06025

BOLT

3шт.

22

PB06C01093D1

RIVET

4шт.

23

YN01T01012F1

HAMMER

1шт.

24

ZS32T40020

SCREW

2шт.

25

ZW16K05000

WASHER

1шт.

26

PM60C01022D1

SHIM

1шт.

27

PM60C01022D2

SHIM,2.0mm Thk

1шт.

35

PM02C00021F1

CAB

See Figure 09 -16

1шт.
