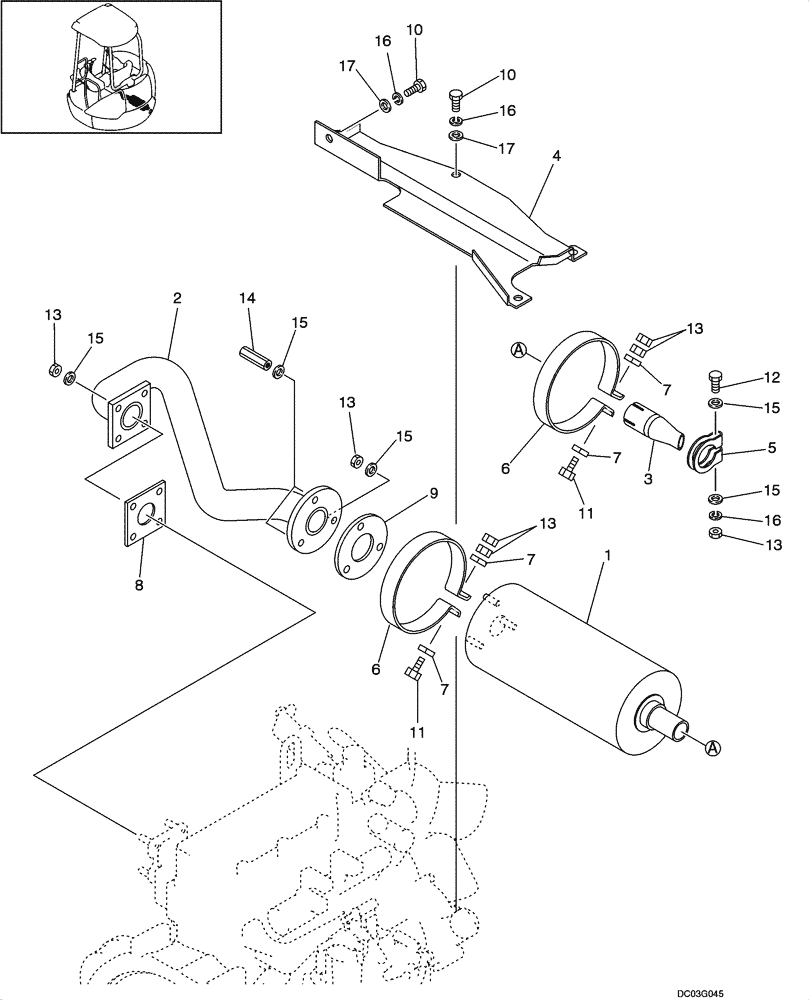

Запчасти Case CX25 (02-06[00]) - MUFFLER ASSY (02) - ENGINE

YANMAR DIESEL ENGINE

1шт.

3TNE74 - NYBB

1шт.

PM12P00010F2

MUFFLER ASSY., Incl. 1 - 17

1шт.

6

PM12P01024P1

CLAMP

2шт.

7

PM12P01034P1

SPACER

4шт.

8

2420T7475

GASKET

1шт.

9

PH12P01005P1

GASKET

1шт.

10

ZS18C08016

SCREW,Hex, M8 x 16mm

3шт.

11

ZS18C08040

SCREW,Hex, M8 x 40mm

2шт.

12

ZS18C08060

SCREW,Hex, M8 x 60mm

1шт.

13

ZN18C08007

NUT

10шт.

14

PM12P01033P1

NUT

NUT

2шт.

15

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

9шт.

16

ZW26X08000

LOCK WASHER

4шт.

17

YR21C01161P1

WASHER,9mm ID x 22mm OD x 2.3mm Thk

3шт.
