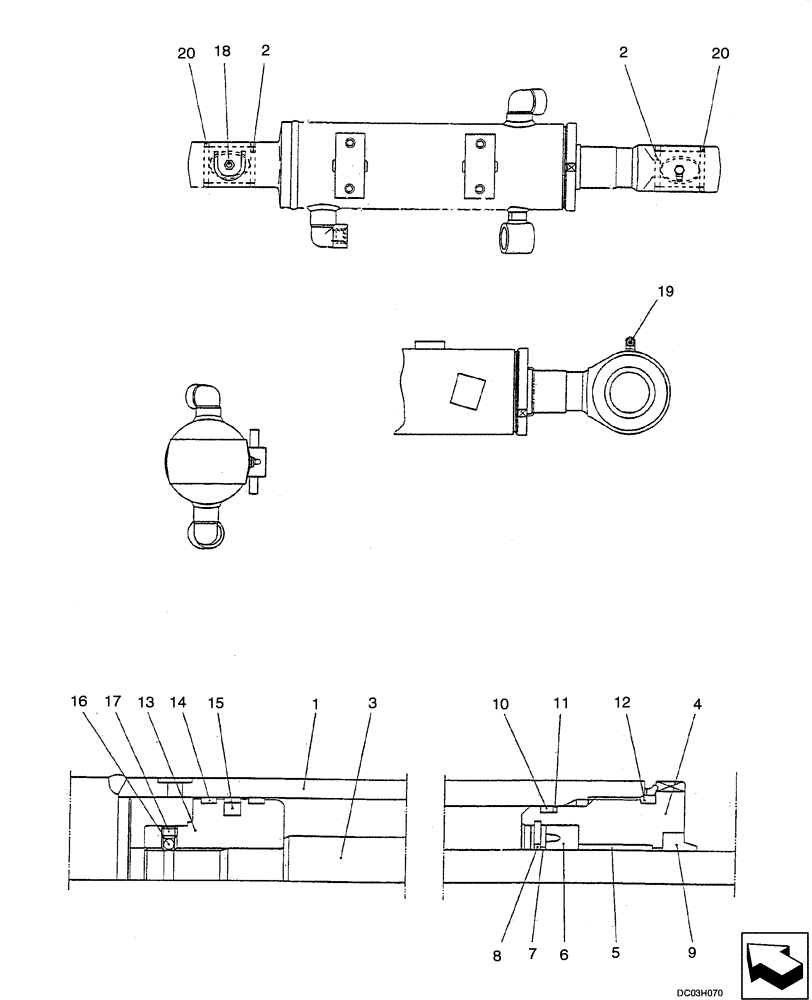

Запчасти Case CX25 (08-64[00]) - CYLINDER, DOZER BLADE (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

2

PM01V00045S002

BUSHING

2шт.

3

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

5

2438U410S8

BUSHING

1шт.

6

PM01V00011S005

RING

1шт.

7

2438U477S5

PACKING

1шт.

8

PM01V00011S007

RING

1шт.

9

PH01V00006S006

RING

1шт.

10

ZD12G07500

O-RING,74.40mm ID x 80.60mm OD x 3.10mm

1шт.

11

ZD75G07500

RING

1шт.

12

ZD12G08000

O-RING,79.40mm ID x 85.60mm OD x 3.10mm

1шт.

15

2438U852S15

RING

1шт.

16

2438U988S19

BALL

1шт.

17

LE01V00004S020

SET SCREW

1шт.

18

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

19

ZG91U02000

LUBE NIPPLE

1шт.

20

PR01V00002S027

SEAL

4шт.
