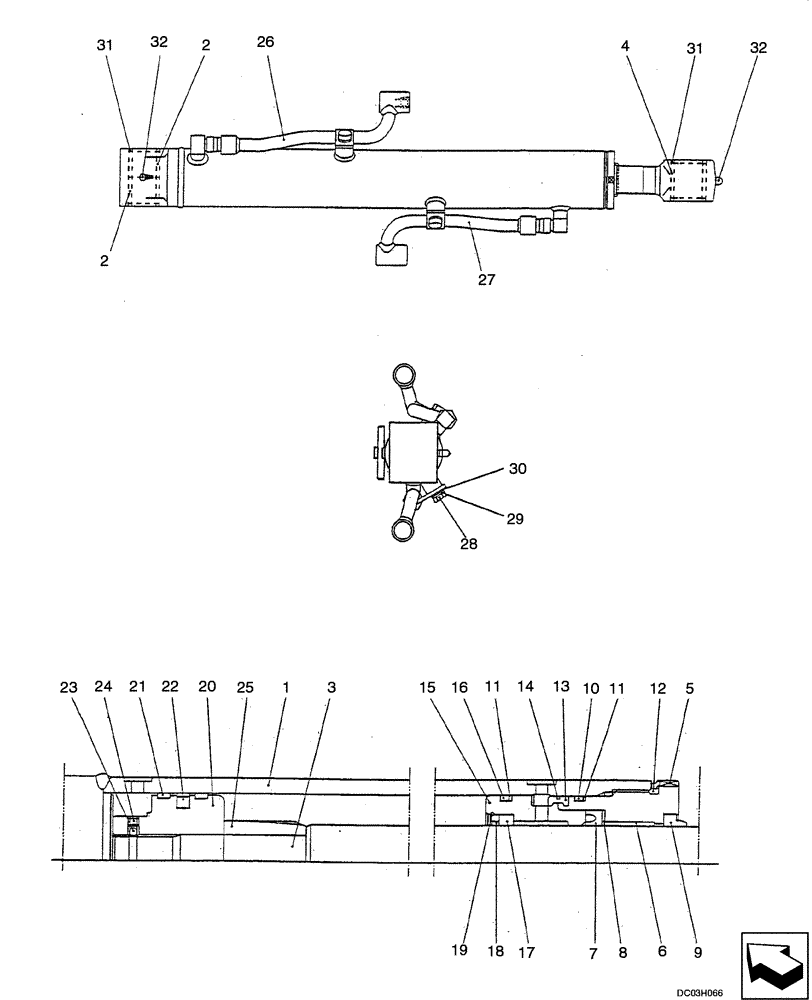

Запчасти Case CX25 (08-60[00]) - CYLINDER ASSY, BOOM - CANOPY (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

7

PM01V00010S005

RING

1шт.

9

PH01V00004S006

WIPER

1шт.

10

ZD12G06500

O-RING,64.40mm ID x 70.60mm OD x 3.10mm

1шт.

11

ZD75G06500

BACK-UP RING

2шт.

12

ZD12G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.

13

PM01V00010S010

HYD CONNECTOR

1шт.

14

PM01V00010S011

RING, SNAP

RING SNAP

1шт.

16

ZD12G06000

O-RING,59.40mm ID x 65.60mm OD x 3.10mm

1шт.

17

PR01V00002S014

RING

1шт.

18

PR01V00002S015

SPACER

1шт.

19

PR01V00002S016

STOP

1шт.

20

PM01V00010S017

PISTON

1шт.

21

2438U854S16

RING

2шт.

22

2438U854S15

RING

1шт.

23

2438U988S19

BALL

1шт.

24

LE01V00004S020

SET SCREW

1шт.

29

ZW22K10000

LOCK WASHER

2шт.

30

PR01V00002S024

WASHER

2шт.

31

PR01V00002S027

SEAL

4шт.

32

2438U1119S19

LUBE NIPPLE,67 Degree x 1/8" PT

2шт.
