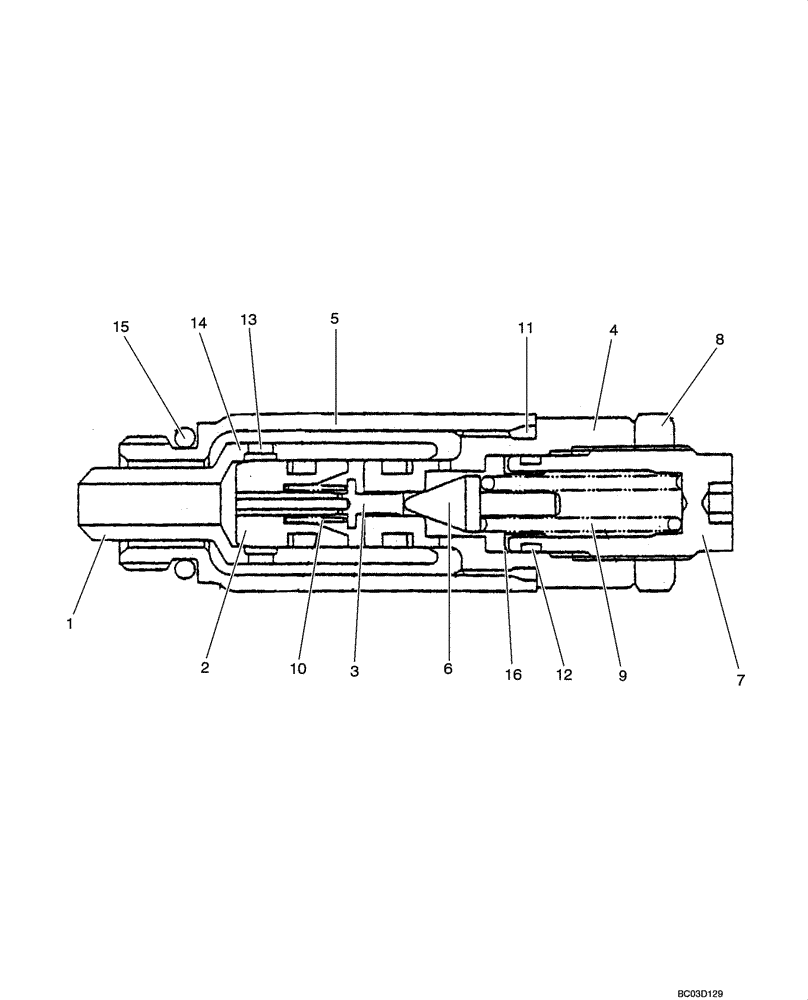

Запчасти Case CX25 (08-46[00]) - VALVE ASSY - PRESSURE RELIEF (PM22V00005F1) (08) - HYDRAULICS

PM22V00005F1

BLEEDER VALVE

VALVE, PRESSURE RELIEF, Incl. 1 - 16; PM22V00005F1 THROUGH PM22V00005FC ARE THE SAME PRESSURE RELIEF VALVE WITH DIFFERENT PRESSURE SETINGS.SEE PARTS AFTER NUMBER 16 FOR PRESSURE SETTINGS.

1шт.

1

NSS

NOT SOLD SEPARAT

Socket

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Control

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

NSS

NOT SOLD SEPARAT

Body

1шт.

6

NSS

NOT SOLD SEPARAT

Valve, Control

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, Adjust

1шт.

8

NSS

NOT SOLD SEPARAT

Nut

1шт.

9

NSS

NOT SOLD SEPARAT

Spring

1шт.

10

NSS

NOT SOLD SEPARAT

Spring

1шт.

11

ZD12P01500

O-RING

1шт.

12

2436R612S13

O-RING

1шт.

13

PH22V00003S013

O-RING

2шт.

14

PH22V00003S014

BACK-UP RING

2шт.

15

ZD12P01400

O-RING

1шт.

16

NSS

NOT SOLD SEPARAT

Guide

1шт.

PM22V00005F1

BLEEDER VALVE

Set Pressure 230kgf / cm at 20L / min

1шт.

PM22V00005F2

VALVE

Set Pressure 180kgf / cm at 17, 2L / mim

1шт.

PM22V00005F3

VALVE PRESSURE RELIE

Set Pressure 260kgf / cm at 5L / min

1шт.

PM22V00005F4

VALVE PRESSURE RELIE

Set Pressure 280kgf / cm at 5L / min

1шт.

PM22V00005F5

VALVE PRESSURE RELIE

Set Pressure 230kgf / cm ay 24L / min

1шт.

PM22V00005F6

VALVE

Set Pressure 180kgf / cm at 20, 8L / min

1шт.

PM22V00005F7

VALVE

Set Pressure 2330kgf / cm at 31, 1L / min

1шт.

PM22V00005F8

VALVE PRESSURE RELIE

Set Pressure 180kgf / cm at 31, 1L / min

1шт.

PM22V00005F9

VALVE

Set Pressure 230kgf / cm at 34, 8L / min

1шт.

PM22V00005FA

VALVE

Set Pressure 200kgf /cm at 25, 2L / min

1шт.

PM22V00005FB

VALVE

Set Pressure 140kgf / cm at 42L / min

1шт.

PM22V00005FC

VALVE

Set Pressure 90kgf / cm at 42L / min

1шт.
