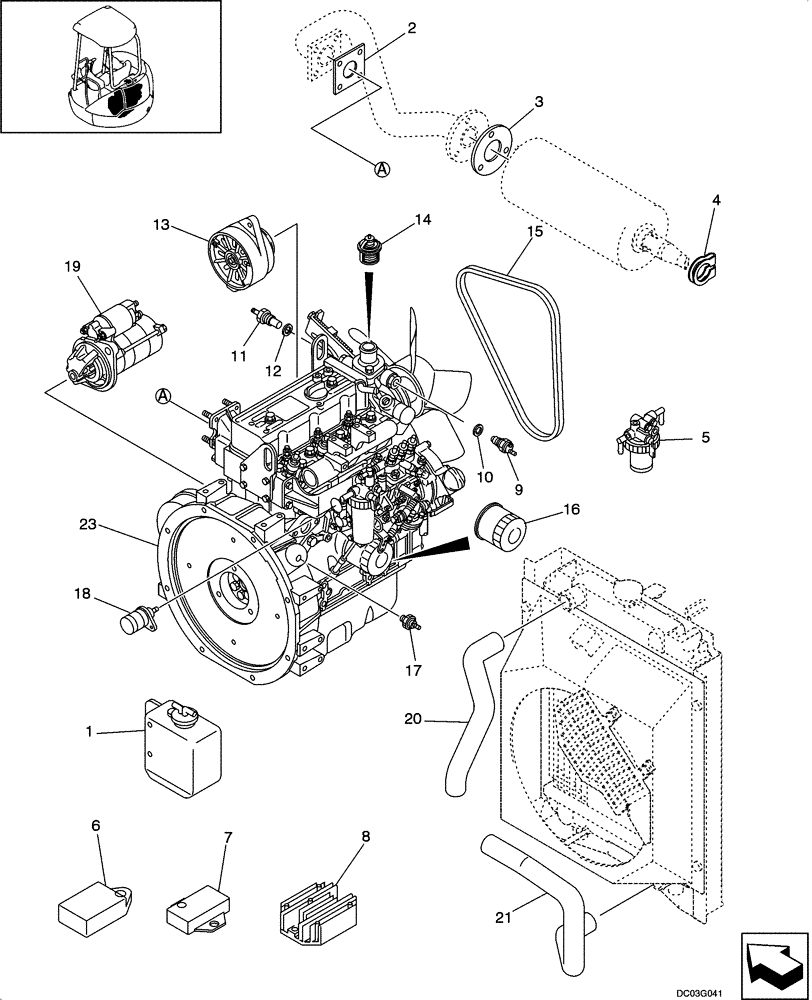

Запчасти Case CX25 (02-02[00]) - ENGINE ASSY (02) - ENGINE

.

YANMAR DIESEL ENGINE

1шт.

.

3TNE74 - NYBB

1шт.

1

VV12146844510

TANK

1шт.

2

2420T7475

GASKET

1шт.

3

PH12P01005P1

GASKET

1шт.

5

PY02P01006P1

FILTER, FUEL

1шт.

6

PH25S00002P1

TIMER

1шт.

7

PU13E01008P1

RESISTOR

(Used for Glow Plug)

1шт.

8

PM13E01028P1

RELAY

(Used for Current Limiter)

1шт.

9

VV12125044901

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

(Used for Engine Coolent Temp Warning)

1шт.

10

VV12446544950

GASKET

1шт.

11

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge)

1шт.

12

PA13E01027P1

PACKING

1шт.

13

VV12915077202

ALTERNATOR

1шт.

14

VV12915549800

THERMOSTAT

1шт.

15

VV11965642290

V-BELT

1шт.

16

VV11930535150

ENGINE OIL FILTER

1шт.

17

VV11425039450

PRESSURE SWITCH,DC6V, 12V, 24V, 49 +/- 1 kPa (7.1 +/- 1.4 psi), PT 1/8"

(Used for Engine Oil Pressure)

1шт.

18

VV11923366511

SOLENOID

(Used for Stop - Fuel Shut-Off)

1шт.

19

VV11925577010

STARTING MOTOR

See Figure 04 -01

1шт.
