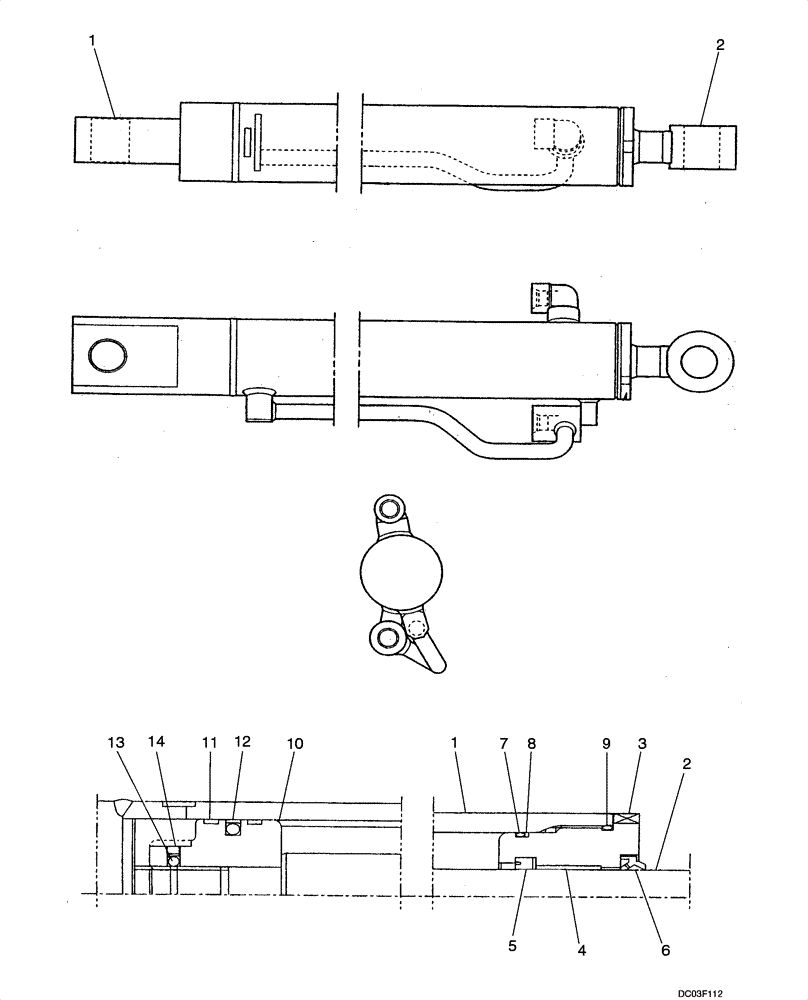

Запчасти Case CX14 (08-55[00]) - CYLINDER ASSY, SPANNER (08) - HYDRAULICS

PE01V00006F1

CYLINDER

SPANNER, Incl. 1 - 14

1шт.

1

PE01V00006S001

TUBE

1шт.

2

PE01V00006S002

CYLINDER ASSY.

1шт.

3

PM01V00009S003

CYLINDER END CAP

1шт.

4

2438U359S4

BUSHING

1шт.

5

PM01V00009S005

BACK-UP RING

1шт.

6

PU01V00013S007

WIPER

1шт.

7

PM01V00009S007

O-RING

1шт.

8

PM01V00009S008

RING, SNAP

RING SNAP

1шт.

9

PM01V00009S009

O-RING

1шт.

10

PE01V00006S010

PISTON

1шт.

11

PU01V00013S016

RING

2шт.

12

PU01V00008S013

SEAL

1шт.

13

2438U988S19

BALL

1шт.

14

2438U988S18

SET SCREW

1шт.
