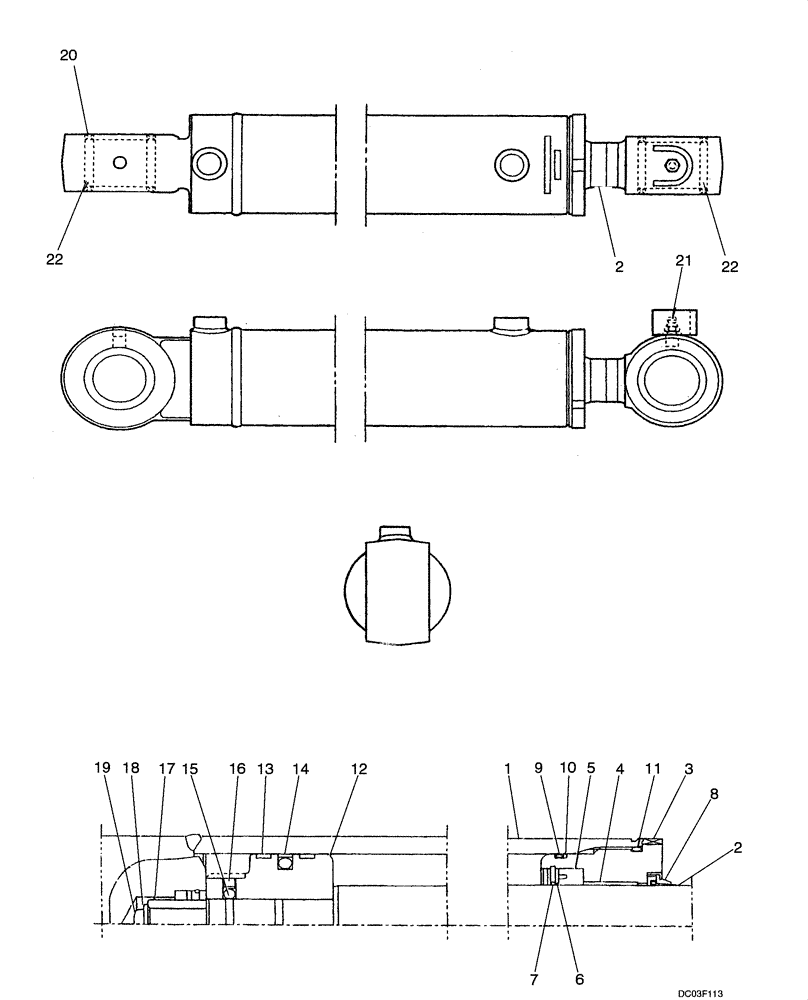

Запчасти Case CX14 (08-54[00]) - CYLINDER, SWING (08) - HYDRAULICS

PE01V00005F1

HYDRAULIC CYLINDER

Incl. 1 - 22

1шт.

1

PE01V00005S001

TUBE

Incl. 22

1шт.

2

PE01V00005S002

CYLINDER ASSY.

Incl. 22

1шт.

3

PR01V00003S003

GLAND

1шт.

4

PR01V00004S004

RING

1шт.

5

PW01V00012S005

RING,37mm ID x 55mm OD x 11mm Thk

1шт.

6

7706584

GASKET

1шт.

7

2437U200S14

RING, SNAP

RING SNAP

1шт.

8

PV01V00023S006

WIPER,33mm ID x 47mm OD x 8mm Thk

1шт.

9

ZD12G06500

O-RING,64.40mm ID x 70.60mm OD x 3.10mm

1шт.

10

PL01V00003S008

BACK-UP RING

1шт.

11

ZD12G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.

12

PR01V00003S012

PISTON

1шт.

13

2438U854S16

RING

2шт.

14

2438U854S15

RING

1шт.

15

2438U854S19

BALL

1шт.

16

PR01V00003S016

ADJUSTMENT SCREW

1шт.

17

PE01V00005S017

BEARING

1шт.

18

PR01V00002S024

WASHER

1шт.

19

PR01V00002S025

BOLT

1шт.

20

PR01V00001S024

GASKET

4шт.

21

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

22

PE01V00005S101

BUSHING

2шт.

PE01V00005R100

SEAL KIT

Incl. 5, 8 - 11, 13, 14

1шт.
