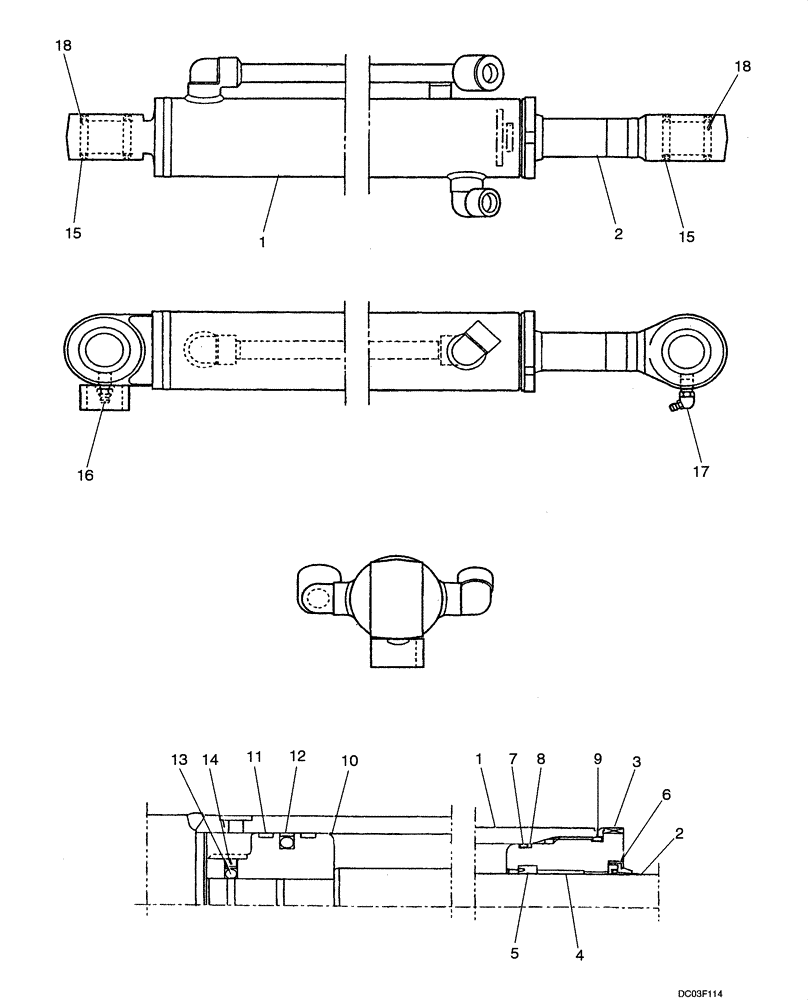

Запчасти Case CX14 (08-53[00]) - CYLINDER, DOZER BLADE (08) - HYDRAULICS

PE01V00004F1

HYDRAULIC CYLINDER

Incl. 1 - 18

1шт.

1

PE01V00004S001

TUBE

Incl. 18

1шт.

2

PE01V00004S002

CYLINDER ASSY.

Incl. 18

1шт.

3

PN01V00003S005

CYLINDER HEAD

1шт.

4

PR01V00004S004

RING

1шт.

5

PM01V00008S005

GASKET

1шт.

6

PV01V00023S006

WIPER,33mm ID x 47mm OD x 8mm Thk

1шт.

7

ZD12G05500

O-RING,3.1mm Thk x 54.4mm ID, 90 Duro

1шт.

8

ZD75G05500

BACK-UP RING

1шт.

9

PE01V00004S009

RING

1шт.

10

PN01V00003S012

RING

1шт.

11

PN01V00003S013

RING

SLIDE RING

2шт.

12

2438U988S16

SEAL

SEAL, Ring Assy.

1шт.

13

2438U988S19

BALL

1шт.

14

PR01V00003S016

ADJUSTMENT SCREW

1шт.

15

PM01V00009S019

GASKET

1шт.

16

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

17

2438U1119S19

LUBE NIPPLE,67 Degree x 1/8" PT

1шт.

18

PA01V00011S101

BUSHING

2шт.

PE01V00004R100

SEAL KIT

Incl. 5 - 9, 11, 12

1шт.
