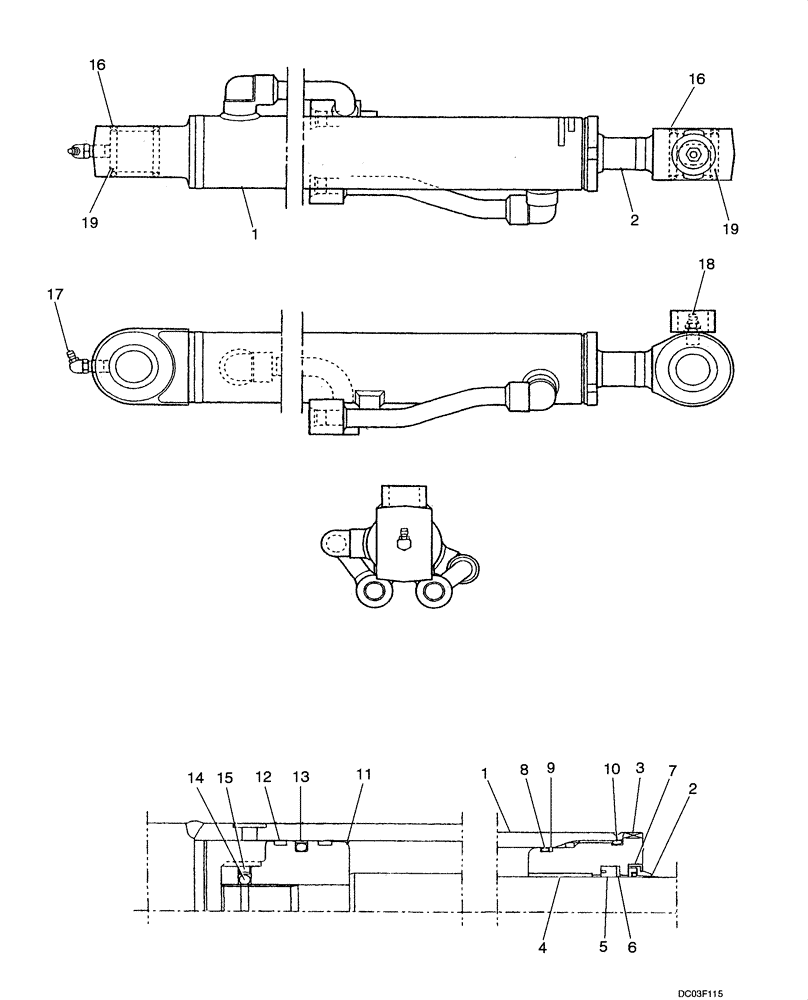

Запчасти Case CX14 (08-52[00]) - CYLINDER ASSY, BUCKET (08) - HYDRAULICS

PE01V00003F1

CYLINDER ASSY.

Incl. 1 -19

1шт.

1

PE01V00003S001

TUBE

Incl. 19

1шт.

2

PE01V00003S002

ROD

Incl. 19

1шт.

3

PU01V00008S003

GLAND

1шт.

4

2438U359S4

BUSHING

1шт.

5

PM01V00009S005

BACK-UP RING

1шт.

6

PU01V00013S006

BACK-UP RING

1шт.

7

PU01V00013S007

WIPER

1шт.

8

ZD12G04500

O-RING,44.40mm ID x 50.60mm OD x 3.10mm

1шт.

9

PU01V00008S009

BACK-UP RING

1шт.

10

PL07V00001S008

BODY

1шт.

11

PA01V00002S011

PISTON

PISTON

1шт.

12

PA01V00002S012

RING

SLIDE RING

1шт.

13

PU01V00008S013

SEAL

1шт.

14

2438U988S19

BALL

2шт.

15

PA01V00002S015

SCREW

SET SCREW

1шт.

16

PM01V00009S019

GASKET

1шт.

17

2438U1119S19

LUBE NIPPLE,67 Degree x 1/8" PT

4шт.

18

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

19

PE01V00003S101

BUSHING

2шт.

PE01V00003R100

SEAL KIT

Incl. 5 - 10, 12, 13

1шт.
