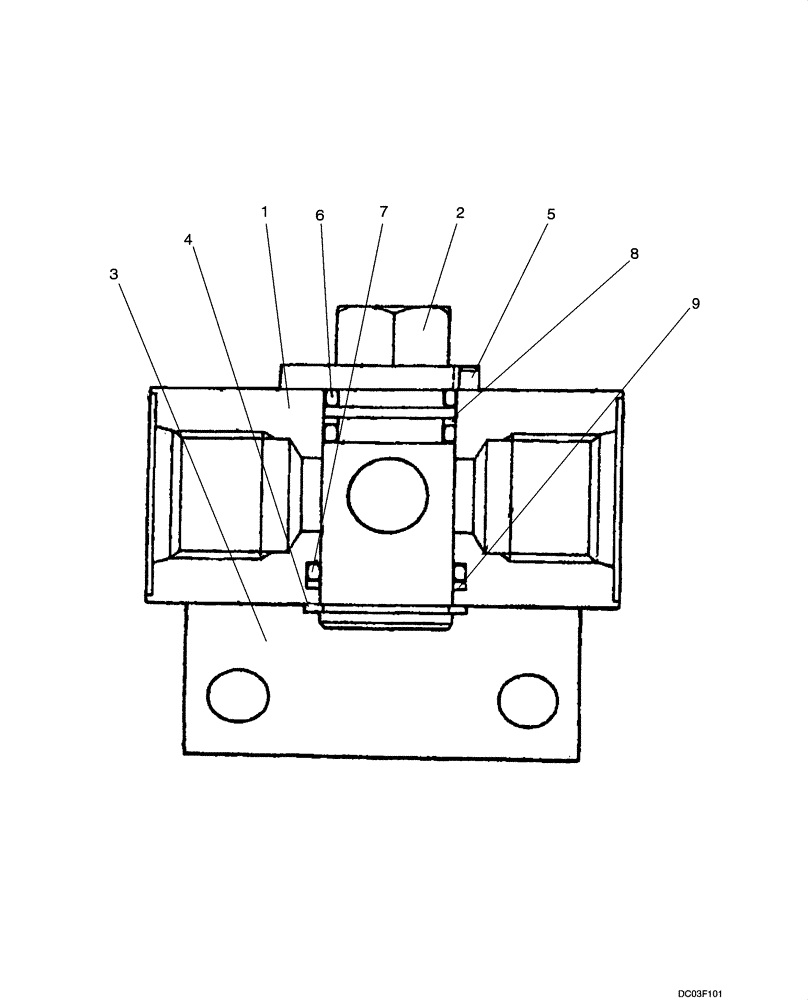

Запчасти Case CX14 (08-47[00]) - VALVE ASSY - STOP (2436R912F1) (08) - HYDRAULICS

2436R912F1

HYDRAULIC VALVE

Shut - Off 4,5 mm, Incl. 1 - 9

1шт.

2436R912F2

SHUT-OFF VALVE

6,0 mm, Incl. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Valve

1шт.

3

NSS

NOT SOLD SEPARAT

Plate

1шт.

4

RZ16X02000

RING

1шт.

5

2436R912S5

PIN

1шт.

6

ZD12P01600

O-RING

1шт.

7

ZD12P02000

O-RING,2.4mm Thk x 19.8mm ID, 90 Duro

1шт.

8

ZD85G01600

RING, BACK UP

1шт.

9

ZD85G02000

RING, BACK UP

1шт.
