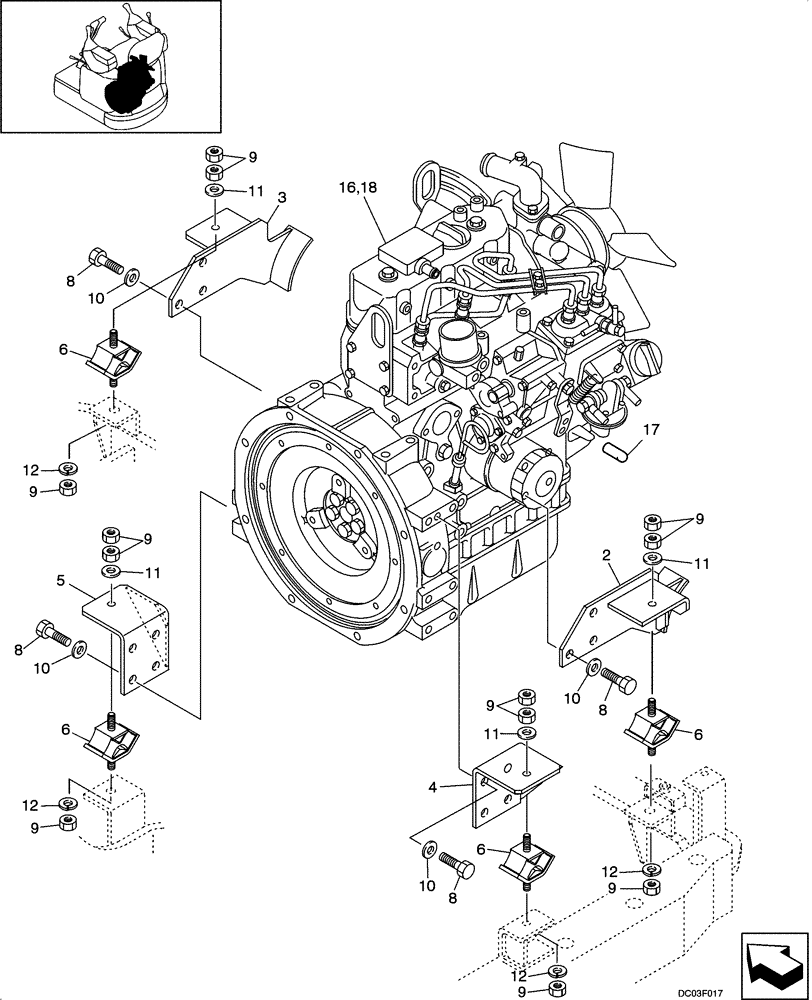

Запчасти Case CX14 (02-01[00]) - ENGINE, MOUNTING (02) - ENGINE

.

YANMAR DIESEL ENGINE

1шт.

.

3TNE68 - YB

1шт.

2

PE02P01009P3

BRACKET

1шт.

3

PE02P01008P2

BRACKET

1шт.

4

PE02P01014P1

BRACKET

1шт.

5

PA02P01017P2

BRACKET

1шт.

6

PA02P01014P1

RUBBER MOUNTING

4шт.

8

ZS18C10020

SCREW,Hex, M10 x 20mm

14шт.

9

ZN18C08007

NUT

12шт.

10

ZW16H10000

WASHER

14шт.

11

ZW16H08000

WASHER

4шт.

12

ZW26X08000

LOCK WASHER

4шт.

16

PE02P00001F3

ENGINE

For S/N PE01-00101- 00590 See Figure 02 -02

1шт.

17

PA02P01027P1

CAP

1шт.

18

PE02P00001F4

ENGINE

For ASN PE01-00591 See Figure 02 -02

1шт.
