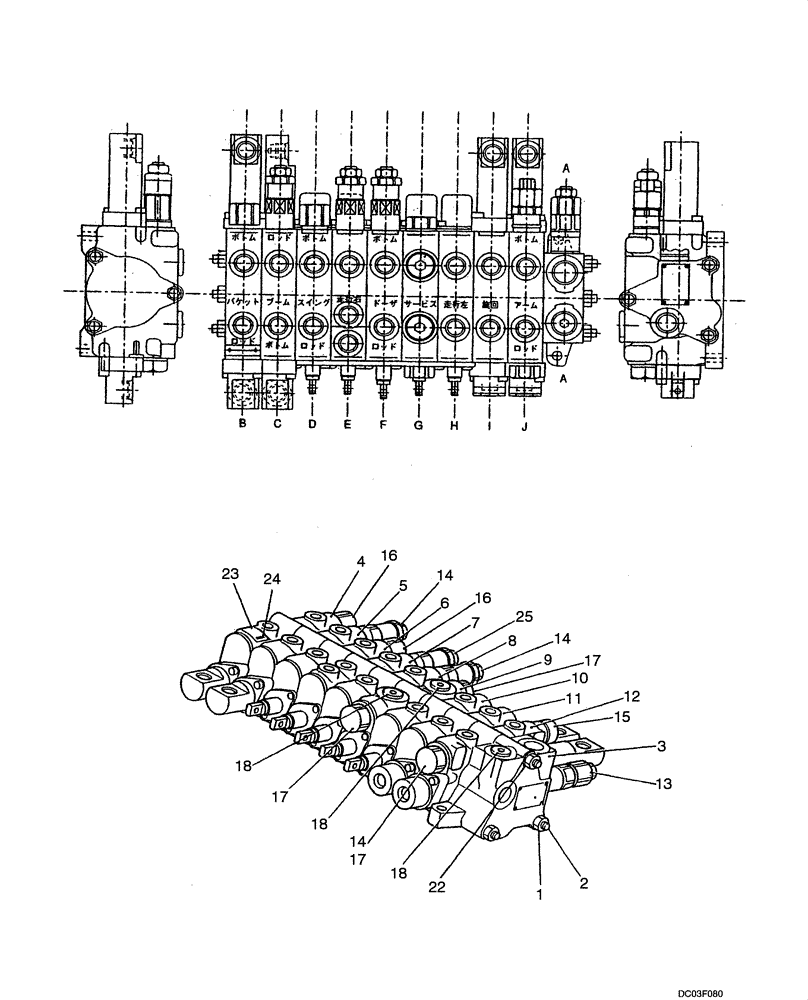

Запчасти Case CX14 (08-21[00]) - VALVE ASSY - CONTROL (ASN PE01-00498) (08) - HYDRAULICS

PE30V00002F2

CONTROL VALVE

Incl. 1 - 25

1шт.

1

2436U424S7

NUT

6шт.

2

PA30V00001S002

BOLT

3шт.

3

PA30V01001F1

COVER ASSY

See Figure 08 -22

1шт.

4

PE30V01001F1

HYDRAULIC VALVE

Bucket, See Figure 08 -23

1шт.

5

PE30V01002F1

HYDRAULIC VALVE

Boom, See Figure 08 -24

1шт.

6

PE30V01003F1

HYDRAULIC VALVE

Swing, See Figure 08 -25

1шт.

7

PE30V01004F1

HYDRAULIC VALVE

Travel R/H, See Figure 08 -26

1шт.

8

PE30V01005F1

HYDRAULIC VALVE

Dozer, See Figure 08 -27

1шт.

9

PA30V01007F1

HYDRAULIC VALVE

Service, See Figure 08 -28

1шт.

10

PE30V01006F1

HYDRAULIC VALVE

Travel L/H, See Figure 08 -29

1шт.

11

PA30V01009F1

HYDRAULIC VALVE

Swing, See Figure 08 -30

1шт.

12

PE30V01007F1

HYDRAULIC VALVE

Arm, See Figure 08 -31

1шт.

13

PV22V00005F1

VALVE

Relief, See Figure 08 -32

1шт.

14

PV22V00002F1

VALVE

Relief, See Figure 08 -33

3шт.

15

PU22V01002F1

VALVE PRESSURE RELIE

See Figure 08 -34

1шт.

16

PU22V01003F1

BLEEDER VALVE

See Figure 08 -35

2шт.

17

PU22V01004F1

PLUG

See Figure 08 -36

2шт.

18

PA30V00001S018

PLUG

3шт.

22

PA30V00001S022

WASHER

1шт.

23

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

24

2436U1027S209

SCREWDRIVER

SCREW

2шт.

25

PA22V01001F1

VALVE PRESSURE RELIE

See Figure 08 -37

1шт.
