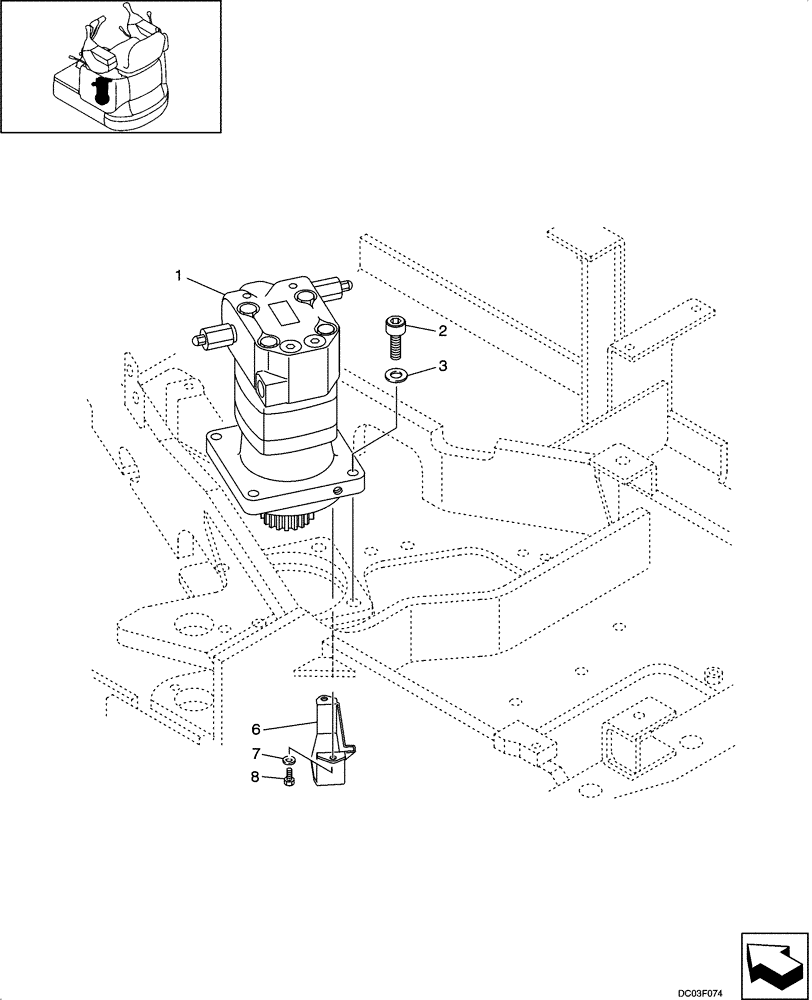

Запчасти Case CX14 (08-15[00]) - MOUNTING - SWING MOTOR (08) - HYDRAULICS

1

PE15V00001F1

HYDRAULIC MOTOR

See Figure 08 -16

1шт.

2

ZS28C12040

SCREW,Hex Socket Head, M12 x 40mm

4шт.

3

PM32W01002D1

WASHER

4шт.

6

PE32W01003P1

COVER

1шт.

7

ZW26X06000

LOCK WASHER

2шт.

8

ZS18C06010

SCREW,Hex, M6 x 10mm

2шт.
