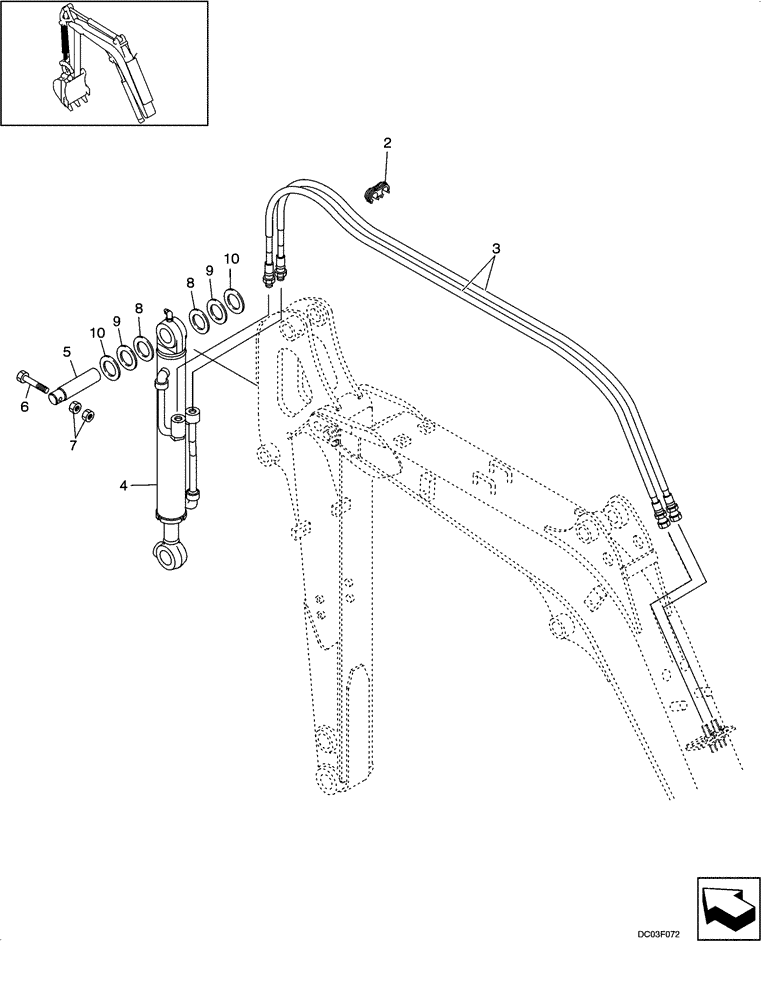

Запчасти Case CX14 (08-13[00]) - HYDRAULIC LINES - ARM (08) - HYDRAULICS

2

PS03H01039D2

CLAMP

1шт.

3

PE42H01008DA

HOSE

for S/N PE01-00101 - 00449

2шт.

3

PE42H01008DE

HOSE ASSY.

for ASN PE01-00450

2шт.

4

PE01V00003F1

CYLINDER ASSY.

See Figure 08 -52

1шт.

5

PA12B01027D1

PIN

1шт.

6

HS18C10065G2

CAPSCREW

1шт.

7

ZN18C10008

NUT

2шт.

8

PE12B01048D1

SHIM

2шт.

9

PE12B01048D2

SHIM,1.0mm Thk

2шт.

10

PE12B01048D3

SHIM,0.5mm Thk

2шт.
