(08-12[00]) - HYDRAULIC LINES - BOOM (NIBBLER & BREAKER)

Запчасти Case CX14 (08-12[00]) - HYDRAULIC LINES - BOOM (NIBBLER & BREAKER) (08) - HYDRAULICS

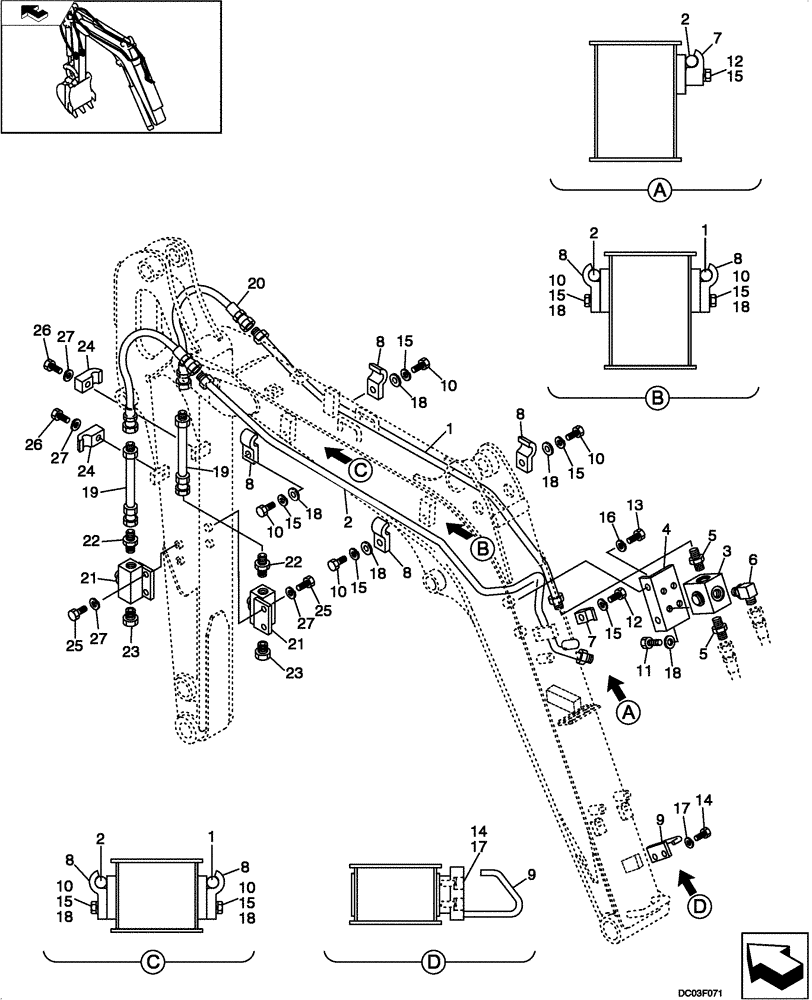

Схема запчастей Case CX14 - (08-12[00]) - HYDRAULIC LINES - BOOM (NIBBLER & BREAKER) (08) - HYDRAULICS
2
26
21
15
10
18
19
5
16
10
15
9
15
10
10
15
18
27
25
18
10
8
12
9
5
8
7
2
14
24
1
20
18
12
18
8
3
17
24
8
13
15
4
18
6
18
23
18
21
27
26
15
19
15
1
11
25
8
15
27
10
17
15
23
2
2
10
8
14
8
22
8
27
7
10
15
18
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PE42H01009P1

TUBE

1шт.

2

PE46H01007P1

TUBE

1шт.

3

PA30V00005F1

VALVE

Selector

1шт.

4

PA42H01023P1

SUPPORT

1шт.

5

HH25S06006G1

HYD CONNECTOR

2шт.

6

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

7

ZC27X15009

CLAMP

1шт.

8

PW42H01012P1

CLAMP

4шт.

9

PE46H01009P1

GUIDE

1шт.

10

ZS18C08025

SCREW,Hex, M8 x 25mm

4шт.

11

ZS18C08020

SCREW,Hex, M8 x 20mm

4шт.

12

ZS18C08035

SCREW,Hex, M8 x 35mm

1шт.

13

ZS18C10020

SCREW,Hex, M10 x 20mm

2шт.

14

ZS28C08016

SCREW,Hex Socket Head, M8 x 16mm

2шт.

15

ZW26X08000

LOCK WASHER

5шт.

16

ZW26X10000

LOCK WASHER

2шт.

17

ZW26K08000

LOCK WASHER

2шт.

18

ZW16H08000

WASHER

8шт.

19

PE43H01001P1

TUBE

2шт.

20

PE43H01003D1

HOSE ASSY.

2шт.

21

PV46H01001P1

SHUT-OFF VALVE

for S/N PE01-00101 - 00469, See Figure 08 -46

2шт.

21

2436R912F2

SHUT-OFF VALVE

for ASN PE01-00470, See Figure 08 -47

2шт.

22

HH25S06008G1

HYD CONNECTOR

2шт.

23

ZE72X08000

PLUG

2шт.

24

ZC27X15009

CLAMP

2шт.

25

ZS18C08014

SCREW,Hex, M8 x 14mm

4шт.

26

ZS18C08035

SCREW,Hex, M8 x 35mm

2шт.

27

ZW26X08000

LOCK WASHER

6шт.
