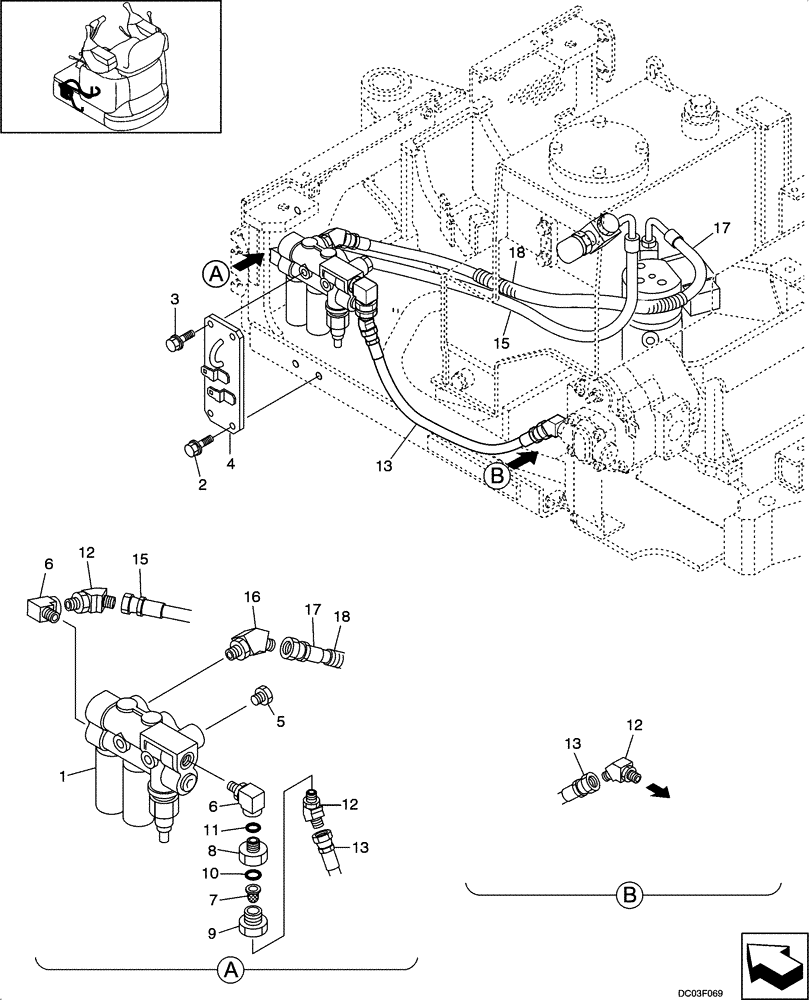

Запчасти Case CX14 (08-09[00]) - HYDRAULIC LINES - VALVE, SOLENOID (08) - HYDRAULICS

1

PH35V00001F2

VALVE

Solenoid, See Figure 08 -41

1шт.

2

ZM22C08025

BOLT

2шт.

3

ZM22C08020

BOLT

2шт.

4

PA64H01015P1

BRACKET

1шт.

5

ZE72X04000

PLUG

1шт.

6

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

2шт.

7

PU35V01001P1

FILTER

1шт.

8

PU30P01003P1

ADAPTER

1шт.

9

PU30P01004P1

ADAPTER

1шт.

10

ZD12P02000

O-RING,2.4mm Thk x 19.8mm ID, 90 Duro

1шт.

11

ZD12P01400

O-RING

1шт.

12

HH45S06006G1

45 ELBOW

3шт.

13

PE64H01004D1

HOSE ASSY.

1шт.

15

PA64H01018D2

HOSE ASSY.

1шт.

16

HH45S04004G1

45 ELBOW

1шт.

17

PA64H01008D2

HOSE ASSY.

1шт.

18

PU13E01002D7

TUBE

1шт.
