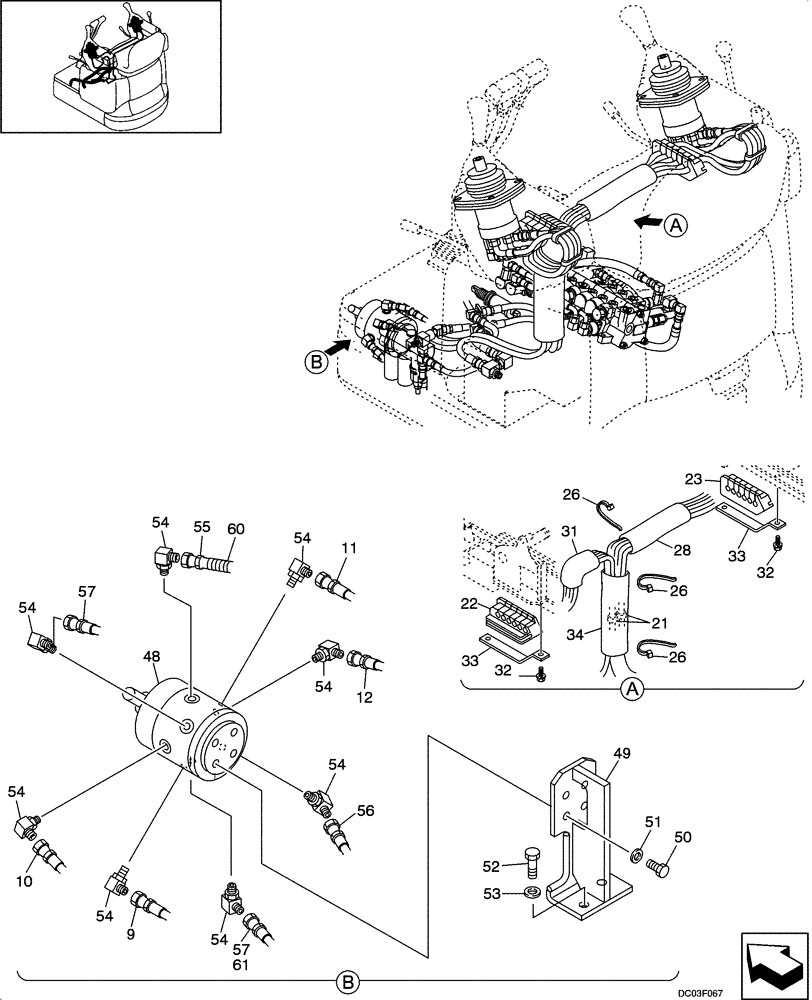

Запчасти Case CX14 (08-08[00]) - HYDRAULICS - PILOT CONTROL LINES, REMOTE CONTROL (C) (08) - HYDRAULICS

9

PE68H01021D1

HOSE ASSY.

Mulity Control Valve

1шт.

10

PE68H01022D1

HOSE

Mulity Control Valve for S/N PE01-00101 - 00300

1шт.

10

PE68H01022D2

HOSE ASSY.

Mulity Control Valve for ASN PE01-00301

1шт.

11

PE68H01023D2

HOSE

Mulity Control Valve for S/N PE01-00101 - 00300

1шт.

11

PE68H01023D4

HOSE

Mulity Control Valve for S/N PE01-00301 - 00481

1шт.

11

PE68H01023D6

HOSE ASSY.

Mulity Control Valve for ASN PE01-00482

1шт.

12

PE68H01024D2

HOSE ASSY.

Mulity Control Valve

1шт.

21

PW03H01058P1

CLAMP

4шт.

22

PA68H01044P2

GROMMET

1шт.

23

PA68H01045P2

GROMMET

1шт.

26

PY01P01043D5

CABLE TIE,301mm L

12шт.

28

PA30H01020D2

HOSE ASSY.

1шт.

31

PA30H01020D3

HOSE ASSY.

1шт.

32

ZM66C06012

BOLT

4шт.

33

PE68H01009P1

PLATE

2шт.

34

PA68H01061P1

SHEET

1шт.

48

2436U1458F3

CONTROL VALVE

See Figure 08 -48

1шт.

49

PE64H01009P1

BRACKET

1шт.

50

ZS28C08020

SCREW,Hex Socket Head, M8 x 20mm

4шт.

51

ZW16K08000

WASHER,8mm ID x 15.5mm OD x 1.6mm Thk

4шт.

52

ZS18C10020

SCREW,Hex, M10 x 20mm

2шт.

53

ZW16H10000

WASHER

2шт.

54

HH35S04006G1

90 ELBOW,90 Degree, 1/4" PF x 3/8" PF x 60mm L

8шт.

55

PE68H01025D1

HOSE

for S/N PE01-00101 - 00300

1шт.

55

PE68H01025D4

HOSE

for S/N PE01-00301 - 00465

1шт.

55

PE68H01025D5

HOSE ASSY.

for ASN PE01-00466

1шт.

56

PE68H91925D2

HOSE

1шт.

57

PE68H01025D3

HOSE ASSY.

for S/N PE01-00101 - 00465

2шт.

57

PE68H01025D3

HOSE ASSY.

for ASN PE01-00466

1шт.

59

PA68H01040D5

TUBE

1шт.

60

PU13E01002D4

TUBE

1шт.

61

PE68H01025D6

HOSE ASSY.

1шт.
