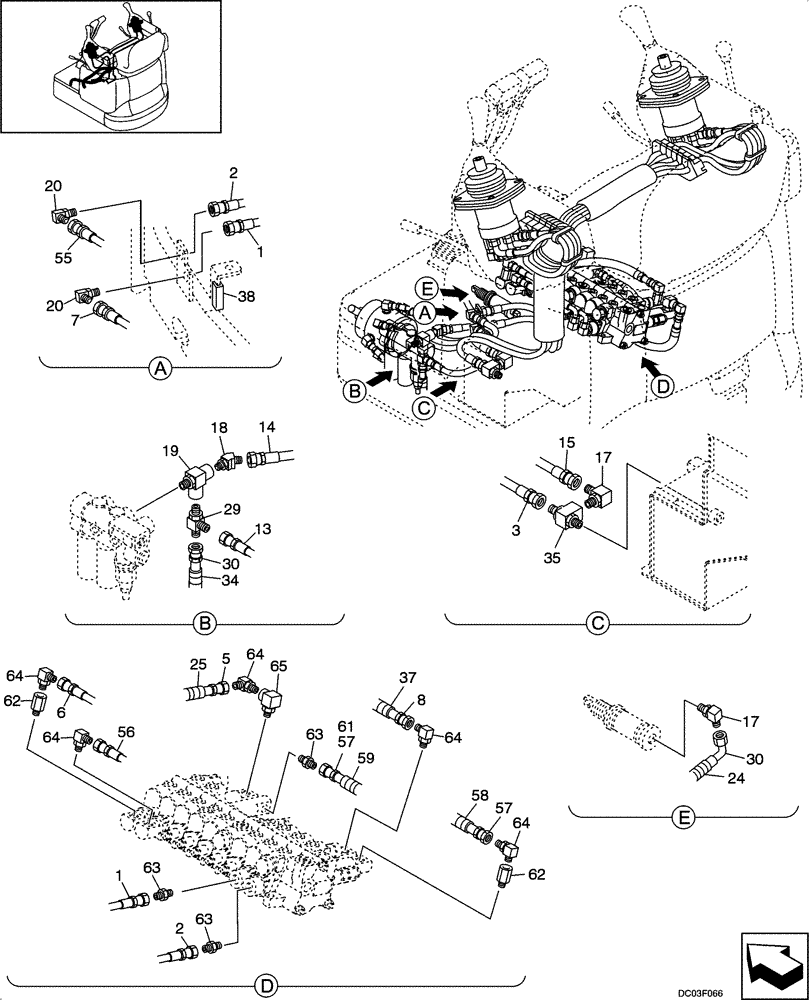

Запчасти Case CX14 (08-07[00]) - HYDRAULICS - PILOT CONTROL LINES, REMOTE CONTROL (B) (08) - HYDRAULICS

1

PE68H01006D6

HOSE ASSY.

Left Hand Valve Pilot

1шт.

2

PE68H01006D7

HOSE ASSY.

Multi

1шт.

3

PA68H01057D6

HOSE ASSY.

Hydraulic Tank

1шт.

5

PE68H01006D1

HOSE ASSY.

Valve Control

1шт.

6

PE68H01005D1

HOSE ASSY.

Valve Control for S/N PE01-00101 - 00481

1шт.

6

PE68H01005D7

HOSE ASSY.

Valve Control for ASN PE01-00482

1шт.

7

PA68H01059D6

HOSE ASSY.

Valve Control

1шт.

8

PE68H01005D2

HOSE ASSY.

Valve Control

1шт.

13

PE68H01010D1

HOSE ASSY.

Valve Solenoid

1шт.

14

PE68H01010D2

HOSE ASSY.

Valve Solenoid

1шт.

15

PA68H01057D8

HOSE ASSY.

Hydraulic Tank

1шт.

17

HH35S04004G1

90 ELBOW

2шт.

18

HH45S04004G1

45 ELBOW

1шт.

19

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

20

PV68H01018P1

ELBOW

2шт.

24

PA68H01040D1

TUBE

1шт.

25

PA68H01040D2

TUBE

1шт.

29

HH55L04004G1

TEE

1шт.

30

PE68H01007D2

HOSE ASSY.

1шт.

35

PE68H01008P1

TEE

1шт.

37

PA68H01040D5

TUBE

2шт.

38

PN02C01004DA

CAP

1шт.

55

PE68H01025D1

HOSE

for S/N PE01-00101 - 00300

1шт.

55

PE68H01025D4

HOSE

for S/N PE01-00301 - 00465

1шт.

55

PE68H01025D5

HOSE ASSY.

for ASN PE01-00466

1шт.

56

PE68H01025D2

HOSE ASSY.

1шт.

57

PE68H01025D3

HOSE ASSY.

for S/N PE01-00101 - 00465

2шт.

57

PE68H01025D3

HOSE ASSY.

for ASN PE01-00466

1шт.

58

PA68H01040D4

TUBE

1шт.

59

PA68H01040D5

TUBE

1шт.

61

PE68H01025D6

HOSE ASSY.

1шт.

62

2444Z2525

HYD CONNECTOR

2шт.

63

HH25S04004G1

HYD CONNECTOR

3шт.

64

HH35S04004G1

90 ELBOW

5шт.

65

2444T2544

ELBOW

1шт.
