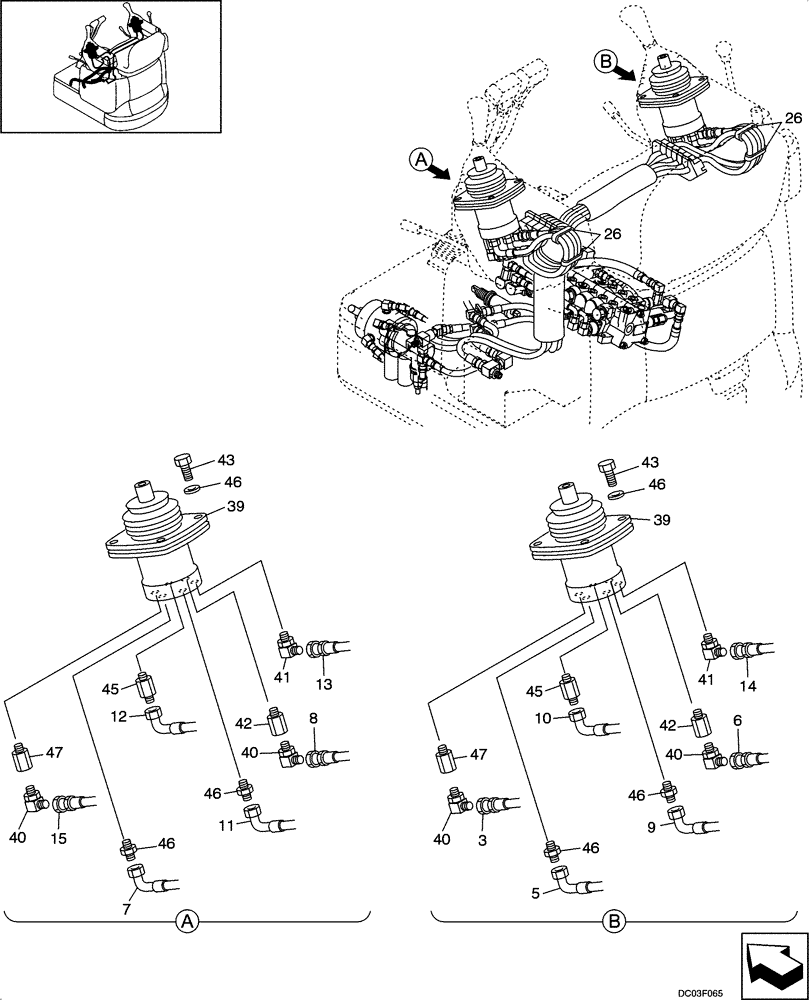

Запчасти Case CX14 (08-06[00]) - HYDRAULICS - PILOT CONTROL LINES, REMOTE CONTROL (A) (08) - HYDRAULICS

3

PA68H01057D6

HOSE ASSY.

Hydraulic Tank

1шт.

5

PE68H01006D1

HOSE ASSY.

Valve Control

1шт.

6

PE68H01005D1

HOSE ASSY.

Valve Control for S/N PE01-00101 - 00481

1шт.

6

PE68H01005D7

HOSE ASSY.

Valve Control for ASN PE01-00482

1шт.

7

PA68H01059D6

HOSE ASSY.

Valve Control

1шт.

8

PE68H01005D2

HOSE ASSY.

Valve Control

1шт.

9

PE68H01021D1

HOSE ASSY.

Mulity Control Valve

1шт.

10

PE68H01022D1

HOSE

Mulity Control Valve for S/N PE01-00101 - 00300

1шт.

10

PE68H01022D2

HOSE ASSY.

Mulity Control Valve for ASN PE01-00301

1шт.

11

PE68H01023D2

HOSE

Mulity Control Valve for S/N PE01-00101 - 00300

1шт.

11

PE68H01023D4

HOSE

Mulity Control Valve for S/N PE01-00301 - 00481

1шт.

11

PE68H01023D6

HOSE ASSY.

Mulity Control Valve for ASN PE01-00482

1шт.

12

PE68H01024D2

HOSE ASSY.

Mulity Control Valve

1шт.

13

PE68H01010D1

HOSE ASSY.

Valve Solenoid

1шт.

14

PE68H01010D2

HOSE ASSY.

Valve Solenoid

1шт.

15

PA68H01057D8

HOSE ASSY.

Hydraulic Tank

1шт.

26

PY01P01043D5

CABLE TIE,301mm L

12шт.

39

PA30V00002F1

PILOT VALVE

See Figure 08 -38

1шт.

40

HH35S04004G1

90 ELBOW

2шт.

41

PA68H01001P1

90 ELBOW

1шт.

42

2444Z2525

HYD CONNECTOR

1шт.

43

ZS28C06030

SCREW,Hex Socket Head, M6 x 30mm

4шт.

44

ZW16K06000

WASHER

4шт.

45

PU64H01002P1

HYD CONNECTOR

1шт.

46

HH25S04004G1

HYD CONNECTOR

2шт.

47

2444T2524

HYD CONNECTOR

1шт.
