(08-04[00]) - HYDRAULIC LINES - UPPER 2 (NIBBLER & BREAKER

Запчасти Case CX14 (08-04[00]) - HYDRAULIC LINES - UPPER 2 (NIBBLER & BREAKER (08) - HYDRAULICS

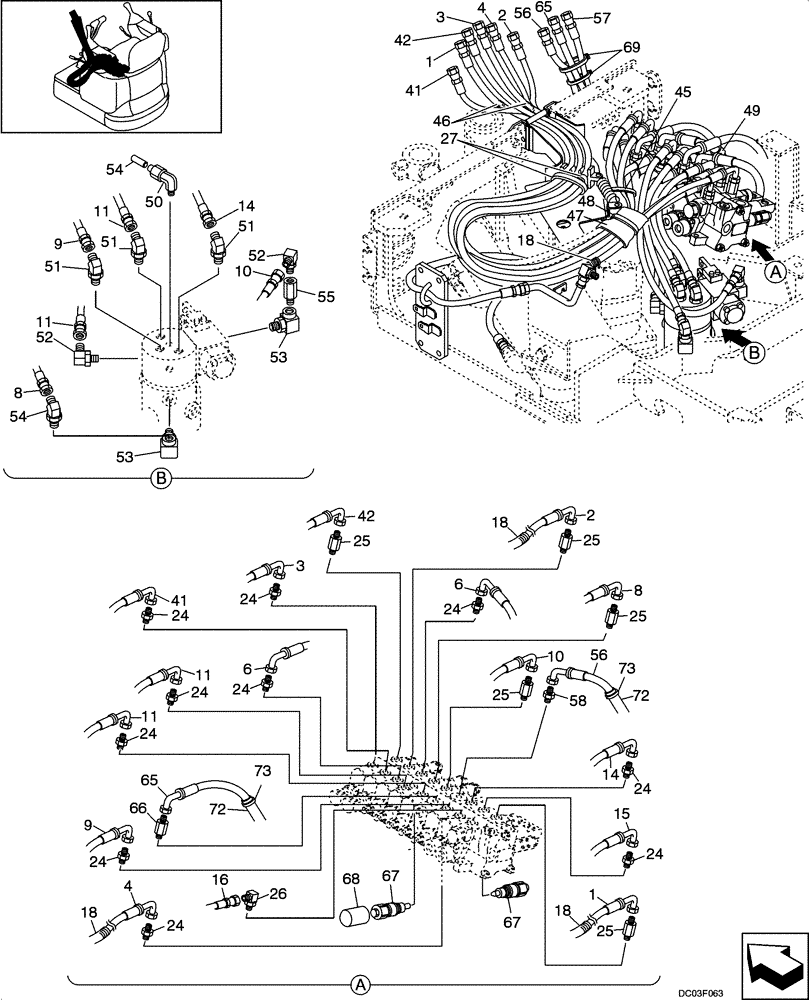

Схема запчастей Case CX14 - (08-04[00]) - HYDRAULIC LINES - UPPER 2 (NIBBLER & BREAKER (08) - HYDRAULICS
3
1
6
56
67
24
24
24
9
24
65
72
18
25
26
10
48
14
14
50
11
41
49
11
57
25
68
54
73
9
24
45
24
53
2
18
42
52
16
8
2
4
51
18
66
42
24
1
65
55
4
53
24
11
46
24
41
3
25
8
54
58
51
10
6
27
56
51
24
47
69
52
18
15
67
72
25
25
11
73
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PA03H01017D6

HOSE ASSY.

Arm, Hydraulic

1шт.

2

PE03H01013D5

HOSE ASSY.

Boom, Return

1шт.

3

PA03H01017D1

HOSE ASSY.

Bucket, Return

1шт.

4

PA03H01018D3

HOSE ASSY.

Arm, Return

1шт.

8

PA03H01015D9

HOSE ASSY.

1шт.

9

PA03H01016D3

HOSE ASSY.

1шт.

10

PA03H01015DA

HOSE ASSY.

1шт.

11

PA03H01016D4

HOSE ASSY.

2шт.

16

PA03H01015D7

HOSE ASSY.

1шт.

14

PA03H01015D8

HOSE

1шт.

18

PU13E01010D7

TUBE

1шт.

24

HH25S94004G1

HOSE

CONNECTOR

10шт.

25

PU64H01002P1

HYD CONNECTOR

5шт.

26

HH35S04004G1

90 ELBOW

1шт.

41

PE03H01013D4

HOSE ASSY.

Boom, Hydraulic

1шт.

42

PE03H01013D6

HOSE ASSY.

Bucket, Hydraulic

1шт.

50

PA19H01002P1

ELBOW

1шт.

51

HH45S04004G1

45 ELBOW

4шт.

52

HH35S04004G1

90 ELBOW

2шт.

53

2444T2544

ELBOW

2шт.

54

PA19H01003P1

BUSHING

1шт.

55

2444T2524

HYD CONNECTOR

1шт.

56

PA03H01047D3

HOSE ASSY.

Nibbler & Breaker

1шт.

58

HH25S06006G1

HYD CONNECTOR

1шт.

65

PA03H01047D4

HOSE ASSY.

1шт.

66

PA03H01051P1

CONNECTION

1шт.

67

PU22V01002F1

VALVE PRESSURE RELIE

See Figure 08 -34

2шт.

68

PA03H01021P1

CAP

1шт.

72

2420Z2185

GROMMET

GROMMET

2шт.

73

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

4шт.
