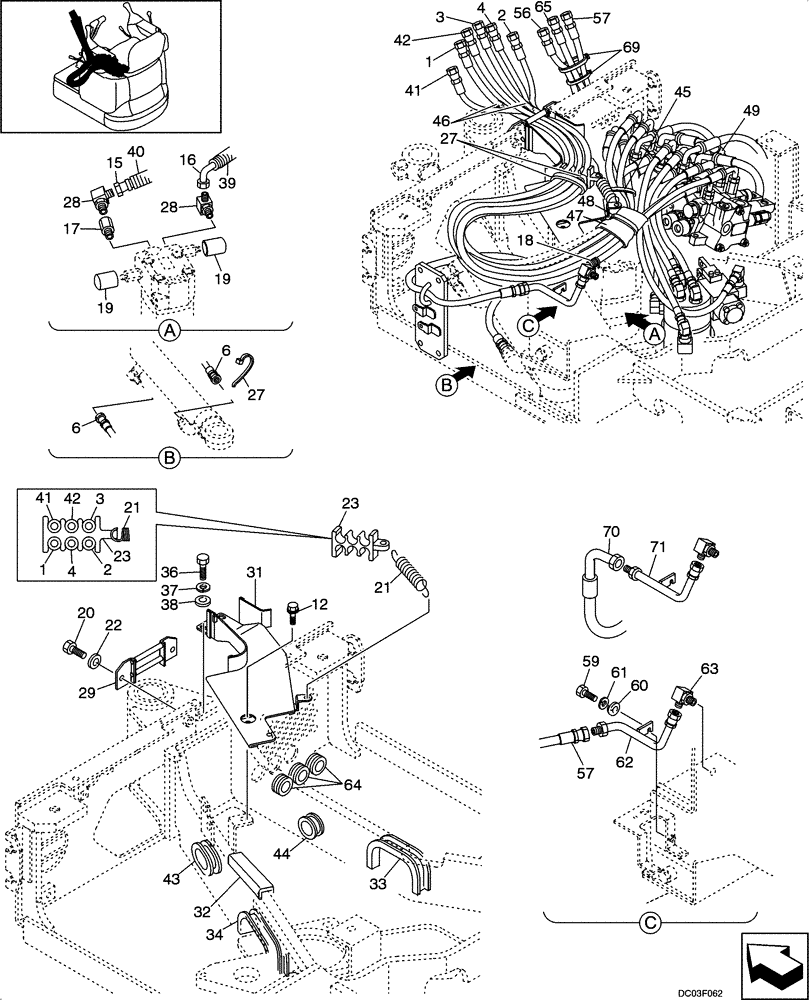

Запчасти Case CX14 (08-03[00]) - HYDRAULIC LINES - UPPER 1 (NIBBLER & BREAKER) (08) - HYDRAULICS

1

PA03H01017D6

HOSE ASSY.

Arm, Hydraulic

1шт.

2

PE03H01013D5

HOSE ASSY.

Boom, Return

1шт.

3

PA03H01017D1

HOSE ASSY.

Bucket, Return

1шт.

4

PA03H01018D3

HOSE ASSY.

Arm, Return

1шт.

6

PA03H01046D4

HOSE ASSY.

2шт.

12

ZM22C08020

BOLT

1шт.

15

PA03H01019D1

HOSE

1шт.

16

PA03H01015D7

HOSE ASSY.

1шт.

17

2444Z3713

HYD CONNECTOR

1шт.

18

PU13E01010D7

TUBE

1шт.

19

PA03H01021P1

CAP

2шт.

20

ZS18C08016

SCREW,Hex, M8 x 16mm

2шт.

21

PE03H01018P1

SPRING

1шт.

22

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

23

PA03H01022P2

CLAMP

1шт.

26

HH35S04004G1

90 ELBOW

1шт.

27

PY01P01043D8

CABLE TIE,102mm L

for S/N PE01-00101 - 00284

1шт.

27

PY01P01043D8

CABLE TIE,102mm L

for S/N PE01-00285 - 00521

2шт.

27

PY01P01043D8

CABLE TIE,102mm L

for ASN PE01-00522

3шт.

28

PA03H01006P1

ELBOW

2шт.

29

PA03H01028P2

GUIDE

1шт.

31

PE03H01027P3

PLATE

1шт.

32

PR03H01039D4

RUBBER

1шт.

33

PE03H01040D1

RUBBER

1шт.

34

PW03H01041D1

RUBBER

1шт.

36

ZS18C06012

SCREW,Hex, M6 x 12mm

2шт.

37

ZW26X06000

LOCK WASHER

2шт.

38

ZW16X06000

WASHER

2шт.

39

PA68H01041D4

HOSE ASSY.

1шт.

40

PA68H01041D5

HOSE ASSY.

1шт.

41

PE03H01013D4

HOSE ASSY.

1шт.

42

PE03H01013D6

HOSE ASSY.

1шт.

43

PE32H01012P1

GROMMET

1шт.

44

PE32H01013P1

GROMMET

1шт.

45

PY01P01043D5

CABLE TIE,301mm L

1шт.

46

PW68H01005DE

TUBE

2шт.

47

PM68H01035D3

HOSE ASSY.

1шт.

48

PY01P01043D3

CABLE TIE,188mm L

1шт.

49

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.

56

PA03H01047D3

HOSE ASSY.

1шт.

57

PE03H01015D4

HOSE

1шт.

59

ZS18C08020

SCREW,Hex, M8 x 20mm

1шт.

60

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

61

ZW26X08000

LOCK WASHER

1шт.

62

PE03H01011P2

TUBE

1шт.

63

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

64

PE03H01006P1

GROMMET

3шт.

65

PA03H01047D4

HOSE ASSY.

1шт.

69

PY01P01043D8

CABLE TIE,102mm L

3шт.

70

PE64H01005D3

HOSE ASSY.

1шт.

71

PE03H01030P1

TUBE

1шт.
