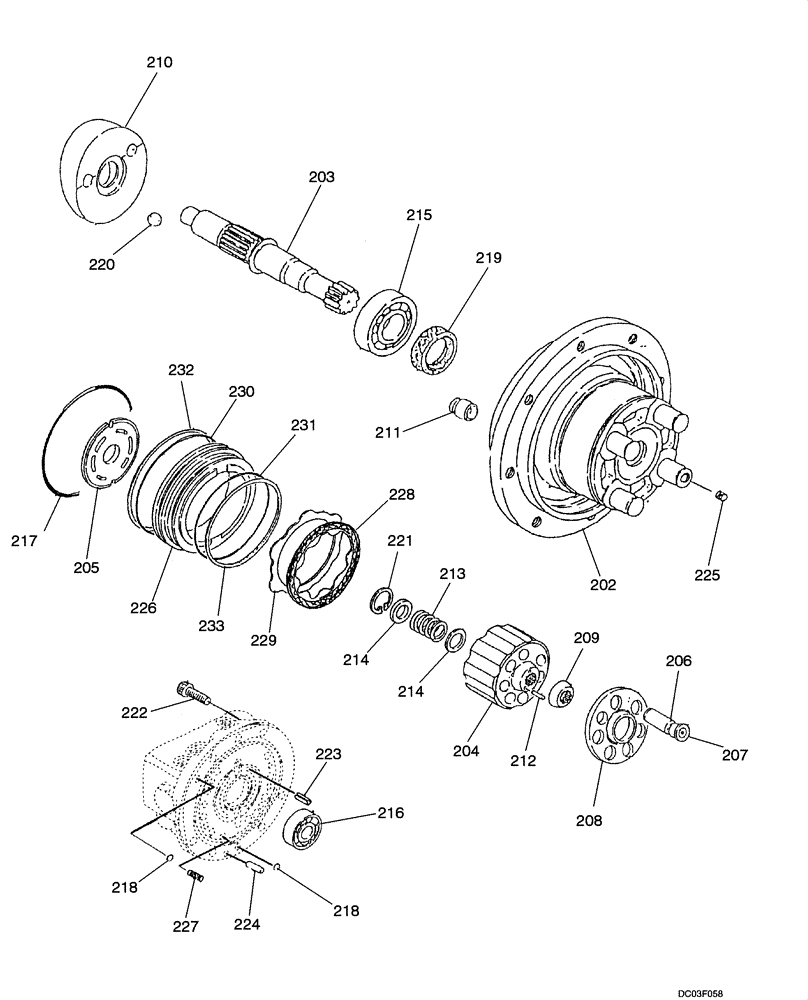

Запчасти Case CX14 (06-03[00]) - MOTOR - TRACK DRIVE (06) - POWER TRAIN

PE15V01003F1

MOTOR- TRACK DRIVE, Incl. 201 -233

1шт.

201

PA15V01002F1

BODY

BODY 1, See Figure 06 -04

1шт.

202

NSS

NOT SOLD SEPARAT

Body 2

1шт.

203

PE15V01001S203

SHAFT

SHAFT

1шт.

204

NSS

NOT SOLD SEPARAT

Cylinder Barrel

1шт.

205

NSS

NOT SOLD SEPARAT

Valve Plate

1шт.

206

NSS

NOT SOLD SEPARAT

Piston

7шт.

207

NSS

NOT SOLD SEPARAT

Shoe

7шт.

208

NSS

NOT SOLD SEPARAT

Shoe Holder

1шт.

209

NSS

NOT SOLD SEPARAT

Barrel, Holder

1шт.

210

PA15V01001S210

PLATE

SWASH PLATE

1шт.

211

NSS

NOT SOLD SEPARAT

Control Piston

1шт.

212

NSS

NOT SOLD SEPARAT

Pin

3шт.

213

NSS

NOT SOLD SEPARAT

Spring

1шт.

214

NSS

NOT SOLD SEPARAT

Retainer

2шт.

215

PA15V01001S215

BEARING

1шт.

216

PR15V00004S074

BEARING

1шт.

217

PA15V01001S217

O-RING

1шт.

218

ZD12P00600

O-RING

1шт.

219

PA15V01001S219

GASKET

1шт.

220

PA15V01001S220

BALL

2шт.

221

ZR26X02800

RING

1шт.

222

PA15V01001S222

SCREW

7шт.

223

PR15V00004S088

LINCH PIN

1шт.

224

PM15V00008S022

PIN

1шт.

225

NSS

NOT SOLD SEPARAT

Plug

1шт.

226

PE15V01003S226

PISTON

1шт.

227

PE15V01003S227

SPRING

10шт.

228

PE15V01003S228

PLATE

1шт.

229

PE15V01003S229

PLATE

1шт.

230

PE15V01003S230

O-RING

1шт.

231

PE15V01003S231

O-RING

1шт.

232

PE15V01003S232

BACK-UP RING

1шт.

233

PE15V01003S233

BACK-UP RING

1шт.

PE15V01003R100

REPAIR KIT ( BODY1) Incl. 201, 216, 223, 301, 322 See Fig. 06 -04

1шт.

PE15V01003R200

REPAIR KIT ( BODY2) Incl. 202, 211, 219, 225

1шт.

PE15V01003R300

REPAIR KIT (CYLINDER BARREL) Incl. 204 - 209, 212 - 214, 221

1шт.

PE15V01003R400

REPAIR KIT (HYD. MOTOR SEAL) Incl. 217 - 219, 230 - 233, 318, 319, See Fig. 06 -04

1шт.

PE15V01003R500

REPAIR KIT (SHAFT) Incl. 203, 215

1шт.
