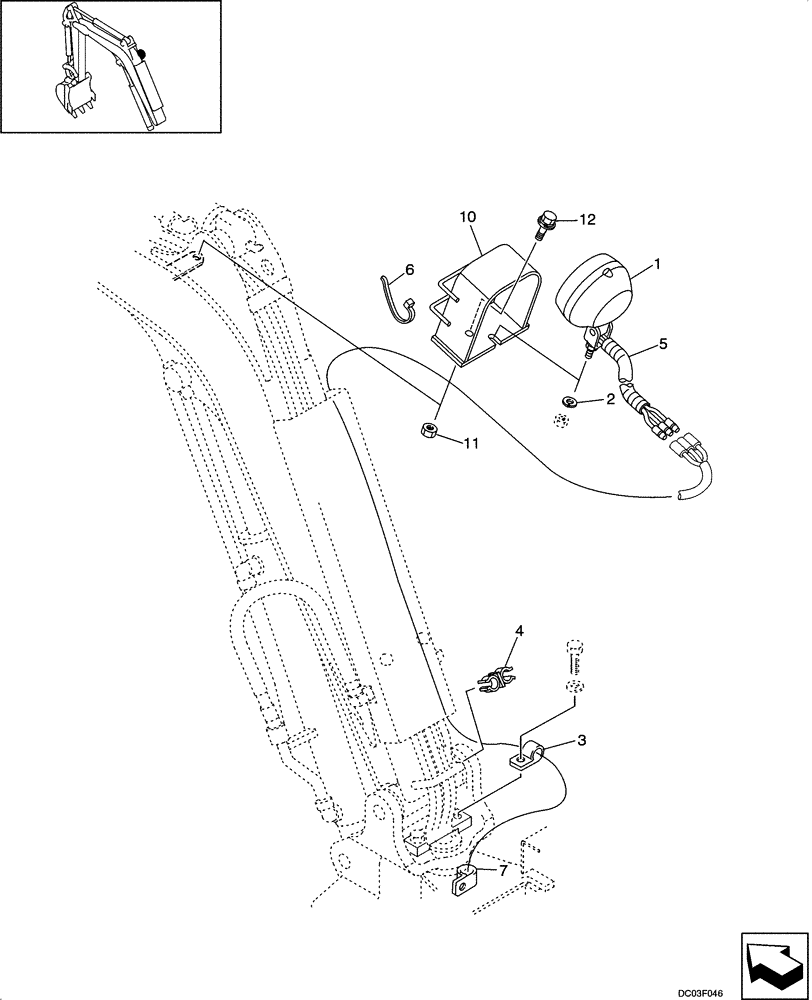

Запчасти Case CX14 (04-07[00]) - LAMP MOUNTING - BOOM (04) - ELECTRICAL SYSTEMS

1

PA80S00003F1

LIGHT ASSY.

See Figure 04 -06

1шт.

2

ZW26X08000

LOCK WASHER

1шт.

3

2432R225D5

CLIP

1шт.

4

PA80S01003D1

CLAMP

1шт.

5

PU06C01020D7

TUBE

1шт.

6

PY01P01D43D3

CLIP

2шт.

7

ZC45X10009

CLIP

1шт.

10

PE80S01002P1

COVER ASSY

1шт.

11

ZN18C08007

NUT

1шт.

12

ZM22C08025

BOLT

1шт.
