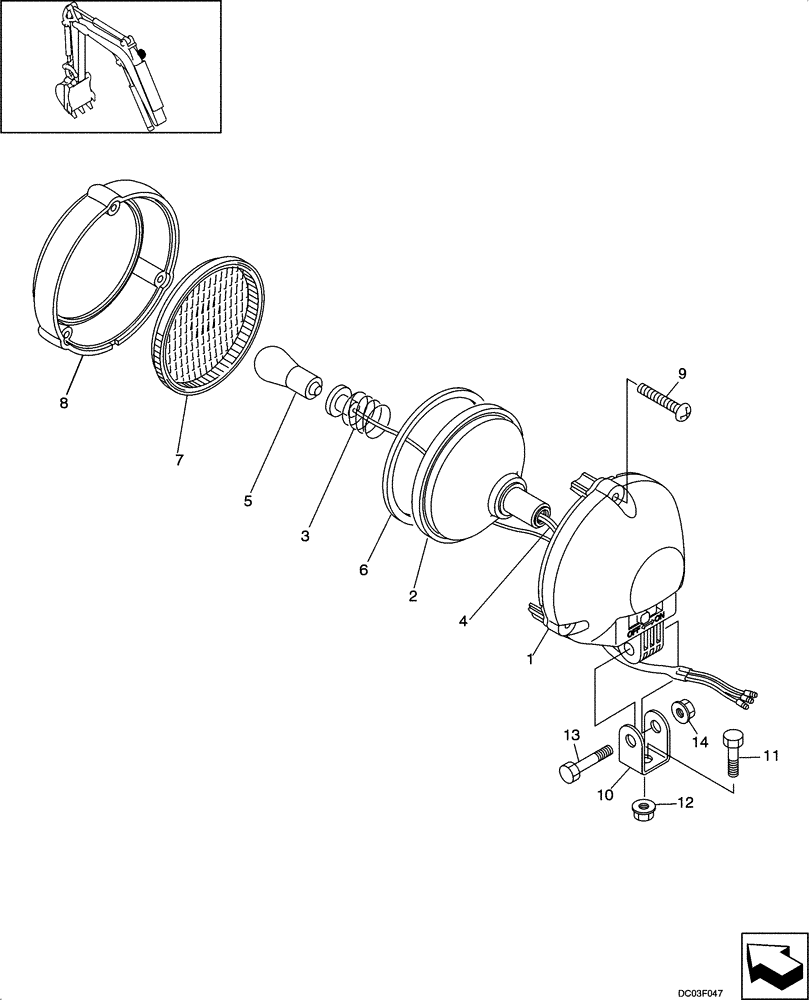

Запчасти Case CX14 (04-06[00]) - LAMP ASSY - BOOM (04) - ELECTRICAL SYSTEMS
![Схема запчастей Case CX14 - (04-06[00]) - LAMP ASSY - BOOM (04) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/casece/548450.png)
14
4
3
7
9
13
10
6
8
1
11
5
2
12
№
Артикул
Название
Примечание
Количество
PA80S00003F1
LIGHT ASSY.
Incl. 1 - 14
1шт.
1
PA80S00003S001
HOUSING
HOUSING
1шт.
2
PA80S00003S002
REFLECTOR
1шт.
3
PA80S00003S003
SPRING
SPRING
1шт.
4
PA80S00003S004
HARNESS
1шт.
5
PA80S00003S005
BULB
1шт.
6
PA80S00003S006
GASKET
1шт.
7
PA80S00003S007
BULB
1шт.
8
PA80S00003S008
RIM
1шт.
9
PA80S00003S009
SCREW, Tapping
3шт.
10
PA80S00003S010
STAY
1шт.
11
PA80S00003S011
CAPSCREW
1шт.
12
PA80S00003S012
NUT
NUT
1шт.
13
PA80S00003S013
CAPSCREW
1шт.
14
PA80S00003S014
NUT
NUT
1шт.
Выбрано товаров: 15
