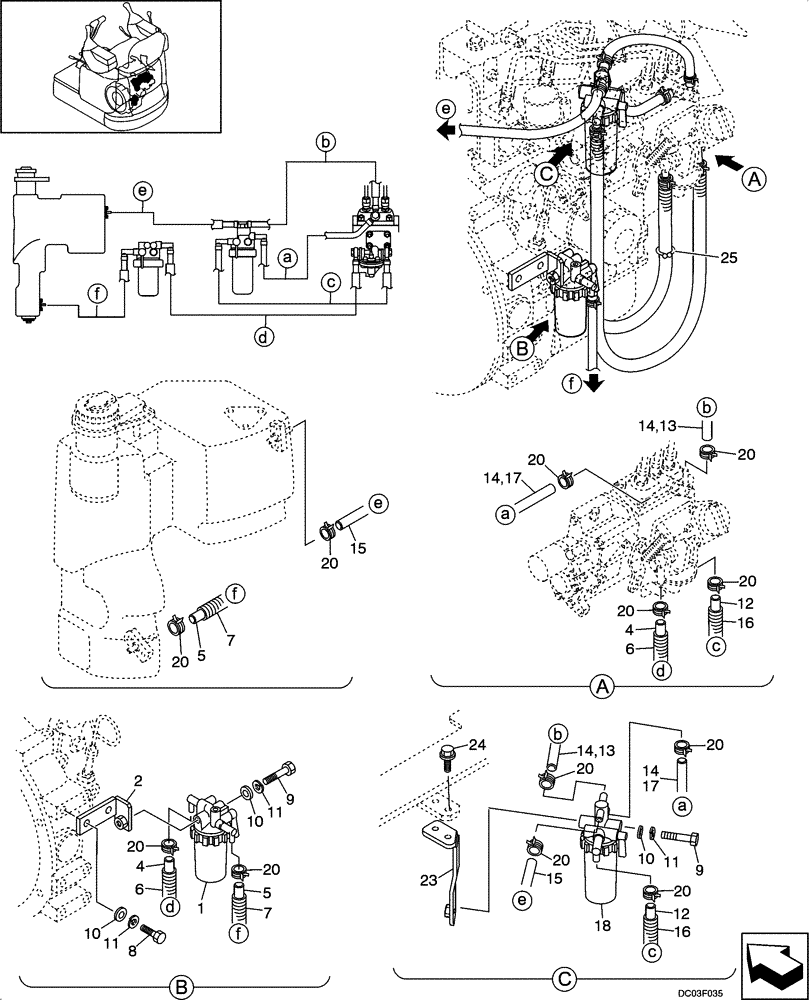

Запчасти Case CX14 (03-02[00]) - FUEL LINES (03) - FUEL SYSTEM

1

PY02P01006P1

FILTER, FUEL

1шт.

2

PE21P01001P1

BRACKET

1шт.

4

PA21P01004DA

HOSE ASSY.

1шт.

5

PA21P01004D6

HOSE

1шт.

6

PU13E01002D9

TUBE

1шт.

7

PU13E01002D7

TUBE

1шт.

8

ZS18C08016

SCREW,Hex, M8 x 16mm

2шт.

9

ZS18C08070

SCREW,Hex, M8 x 70mm

2шт.

10

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

4шт.

11

ZW26X08000

LOCK WASHER

4шт.

12

PA21P01004DD

HOSE ASSY.

1шт.

13

PA21P01004DE

HOSE ASSY.

For ASN PE01-00591

1шт.

14

PA21P01004DU

HOSE

HOSE For S/N PE01-00101 - 00590

1шт.

15

PA21P01004DP

HOSE ASSY.

1шт.

16

PW21P01003D7

FLEXIBLE HOSE

1шт.

17

PA21P01004DV

HOSE ASSY.

1шт.

18

PA50V01001P1

FUEL FILTER

1шт.

20

PH05P01088D5

CLIP

12шт.

22

PY01P01043D3

CABLE TIE,188mm L

1шт.

23

PE21P01004P1

PLATE

1шт.

24

ZM22C08025

BOLT

2шт.

25

PA21P01003D1

CLIP

1шт.
