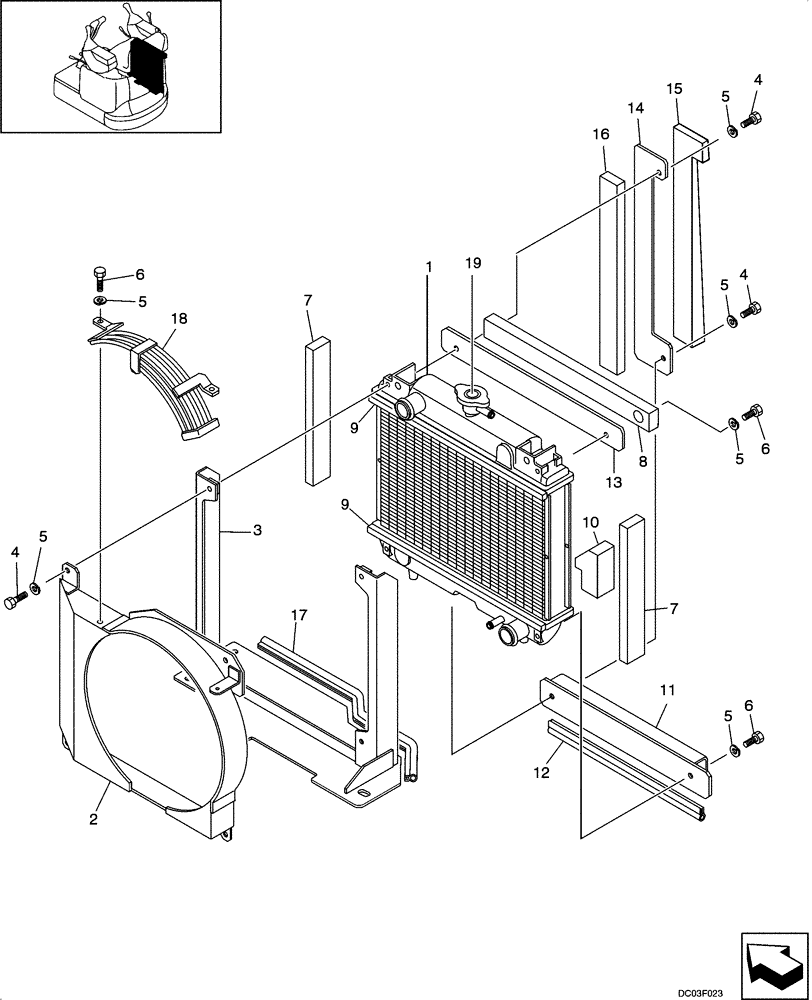

Запчасти Case CX14 (02-07[00]) - RADIATOR (02) - ENGINE

YANMAR DIESEL ENGINE

1шт.

3TNE68 - YB

1шт.

PE05P00003F2

RADIATOR

RADIATOR ASSY., Incl. 1 - 18

1шт.

1

PA05P00001F1

RADIATOR

1шт.

2

PA05P01004P1

SHROUD

1шт.

3

PE05P01003P1

BRACKET

1шт.

4

ZS18C06020

SCREW,Hex, M6 x 20mm

6шт.

5

ZW26X06000

LOCK WASHER

10шт.

6

ZS18C06016

SCREW,Hex, M6 x 16mm

4шт.

7

PA05P01007P2

FOAM INSULATION

2шт.

8

PE05P01021P2

FOAM INSULATION

1шт.

9

PA05P01022P2

FOAM INSULATION

2шт.

10

PE05P01046P1

FOAM INSULATION

1шт.

PE05P01049F1

PLATE

PLATE ASSY., Incl. 11, 12

1шт.

11

PE05P01013P2

PLATE

1шт.

12

YR21C01168D7

WEATHERSTRIP

1шт.

13

PE05P01014P2

PLATE

1шт.

PE05P01048F1

PLATE

PLATE ASSY., Incl. 14 - 16

1шт.

14

PE05P01042P1

PLATE

1шт.

15

PE05P01024P2

FOAM INSULATION

INSULATION

1шт.

16

PE05P01047P1

FOAM INSULATION

1шт.

17

PA21C01010D2

WEATHERSEAL STRIP

1шт.

18

PE05P01050P1

GUARD

1шт.

YANMAR DIESEL PART NO.

1шт.

1

VV11932544510

RADIATOR

Incl. 19

1шт.

19

VV11925944570

RADIATOR CAP

1шт.
