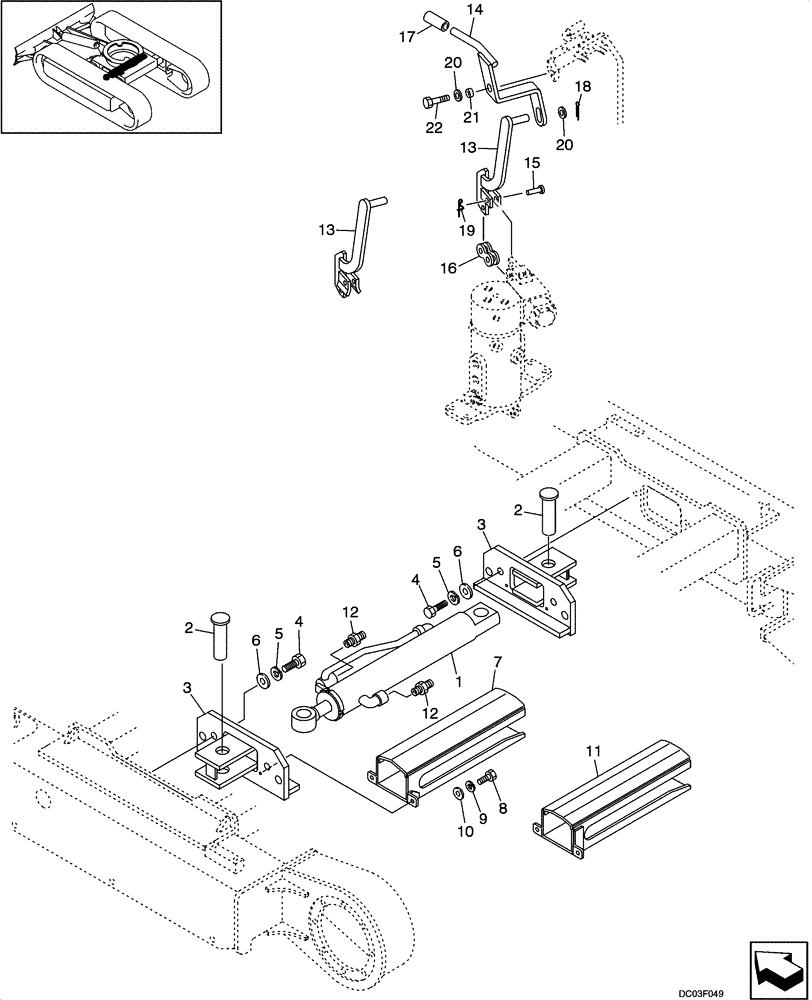

Запчасти Case CX14 (05-02[00]) - ADJUSTABLE FRAME (11) - TRACKS/STEERING

1

PE01V00006F1

CYLINDER

Spanner, See Figure 08 -55

1шт.

2

PE02F01021P2

PIN

2шт.

3

PE01V01001P1

BRACKET

2шт.

4

ZS18C12045

SCREW,Hex, M12 x 45mm

4шт.

5

ZW26X12000

LOCK WASHER

4шт.

6

ZW16H12000

WASHER

4шт.

7

PE02F01022P3

COVER

for S/M PE01-00101 - 00568

1шт.

8

ZS18C06012

SCREW,Hex, M6 x 12mm

2шт.

9

ZW26X06000

LOCK WASHER

2шт.

10

ZW16X06000

WASHER

2шт.

11

PE01V01005P1

COVER

COVER, for ASN S/N PE01-00101 - 00568

1шт.

12

HH25S04004G1

HYD CONNECTOR

2шт.

13

PE50M01001P1

LEVER

for S/N PE01-00101 - 00570

1шт.

13

PE50M01097P1

LEVER

for ASN PE01-00571

1шт.

14

PE50M01068P1

LEVER

for S/N PE01-00101 - 00480

1шт.

14

PE50M01068P2

LEVER

for ASN PE01-00481

1шт.

15

PA50M01070P2

PIN

1шт.

16

PA50M01047P1

LINK

1шт.

17

PA50M01048P1

CAP

1шт.

18

2419R9D2

COTTER PIN

OD 08mm x 27.7mm Long

1шт.

19

PA50M01034P1

PIN

1шт.

20

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

21

PE50M01034P1

SPACER

1шт.

22

ZM22C08025

BOLT

1шт.
