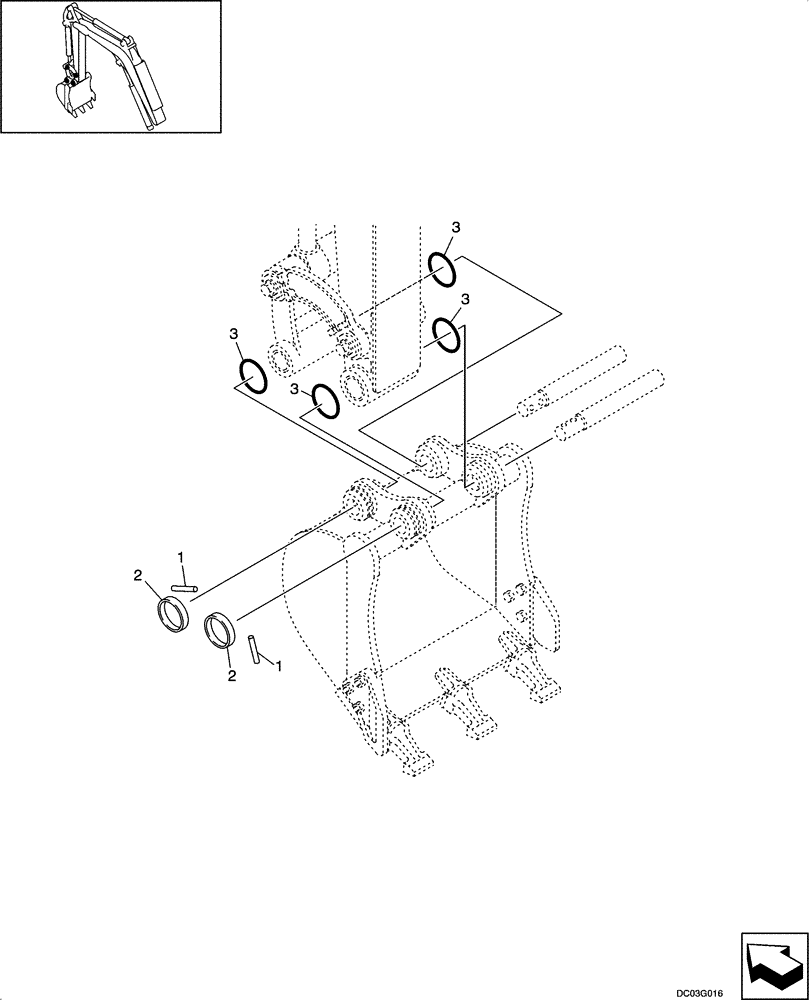

Запчасти Case CX14 (09-30[00]) - BUCKET- MOUNTING (09) - CHASSIS/ATTACHMENTS

1

PW61B01019P1

PIN

2шт.

2

PW61B01031P1

RING

2шт.

3

ZD11P05600

O-RING

for S/N PE01-00101 - 00606

4шт.

3

PE61B01008P1

O-RING

for ASN PE01-00607

4шт.

.

84475856

KIT

Esco Bucket Install

1шт.

1

11107731

SCREW,Hex, M10 x 75mm, Cl 10.9

2шт.

2

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

2шт.

3

72275149

SHIM,31mm ID x 55mm OD x 0.50mm Thk

2шт.

3

72270984

SHIM,31mm ID x 55mm OD x 0.90mm Thk

2шт.
