1
PE12B00010F2
ARM
Incl. 2 - 12
1шт.
2
PE12B00012P1
ARM
ARM Incl. 3 - 8
1шт.
3
PE12B00011P1
ARM, Long, Incl. 4 - 5
1шт.
4
PM12B01309P1
BLOCK
4шт.
5
PA12B01095P1
BLOCK
2шт.
6
PE12B01044P1
PLATE
1шт.
7
PE12B01045P1
PLATE
1шт.
8
PE12B01046P1
PLATE
1шт.
9
PE12B01036D1
COLLAR
2шт.
10
PE12B01038P2
BUSHING,30mm ID x 61mm OD x 45mm L
2шт.
11
PE12B01075P1
BUSHING,30mm ID x 40mm OD x 40mm L
2шт.
12
PE12B01074P1
BUSHING
2шт.
13
PE12B01061P1
PIN
1шт.
14
HS18C10065G2
CAPSCREW
1шт.
15
ZN18C10008
NUT
2шт.
16
PA12B01031P1
WASHER
1шт.
17
PA12B01030P1
COLLAR
1шт.
18
ZS18C10030
SCREW,Hex, M10 x 30mm
1шт.
19
ZW26X10000
LOCK WASHER
1шт.
20
PE12B01007D2
SHIM
2шт.
21
PE12B01007D3
SHIM
2шт.
22
ZG91S02000
LUBE NIPPLE,1/8" NPT x 1/8" NPT
2шт.
23
PE12B01058P1
PIN
1шт.
24
PA12B01066P1
WASHER
1шт.
25
PB02B01012D1
SHIM,0.5mm Thk
1шт.
26
ZS18C16030
SCREW,Hex, M16 x 30mm
1шт.
27
ZW16H16000
WASHER
1шт.
28
PA12B01077P1
SHIM,0.5mm Thk
1шт.
29
PB02B01012D2
SHIM,0.9mm Thk
1шт.
30
PB02B01012D3
SHIM,1.2mm Thk
1шт.
PE12B01069F3
LINK
Incl. 31 - 34
1шт.
31
PE12B01071P1
LINK
1шт.
32
PE12B01036D1
COLLAR
2шт.
33
PE12B01075P1
BUSHING,30mm ID x 40mm OD x 40mm L
2шт.
34
PE12B01076P1
BUSHING
1шт.
35
PE12B01010P1
LINK
2шт.
36
PE12B01073P1
PIN
2шт.
37
PE12B01051P1
PIN
PIN for S/N PE01-00101 - 00638
1шт.
37
PE12B01051P2
PIN
PIN for ASN PE01-00639
1шт.
38
PE12B01052P1
PIN
PIN for S/N PE01-00101 - 00638
1шт.
38
PE12B01052P2
PIN
PIN for ASN PE01-00639
1шт.
39
PN54D01001D1
DUST CAP
12шт.
40
ZG91S02000
LUBE NIPPLE,1/8" NPT x 1/8" NPT
4шт.
41
PE12B01048D2
SHIM,1.0mm Thk
2шт.
42
PE12B01048D3
SHIM,0.5mm Thk
2шт.
43
ZS18C12025
SCREW,Hex, M12 x 25mm
2шт.
44
ZW16H12000
WASHER
2шт.
45
PE12B01057P1
WASHER
2шт.
46
PE12B01056D1
SHIM
2шт.
47
PE12B01056D2
SHIM
2шт.
48
PE12B01056D3
SHIM
, Serial Range: -ø
2шт.

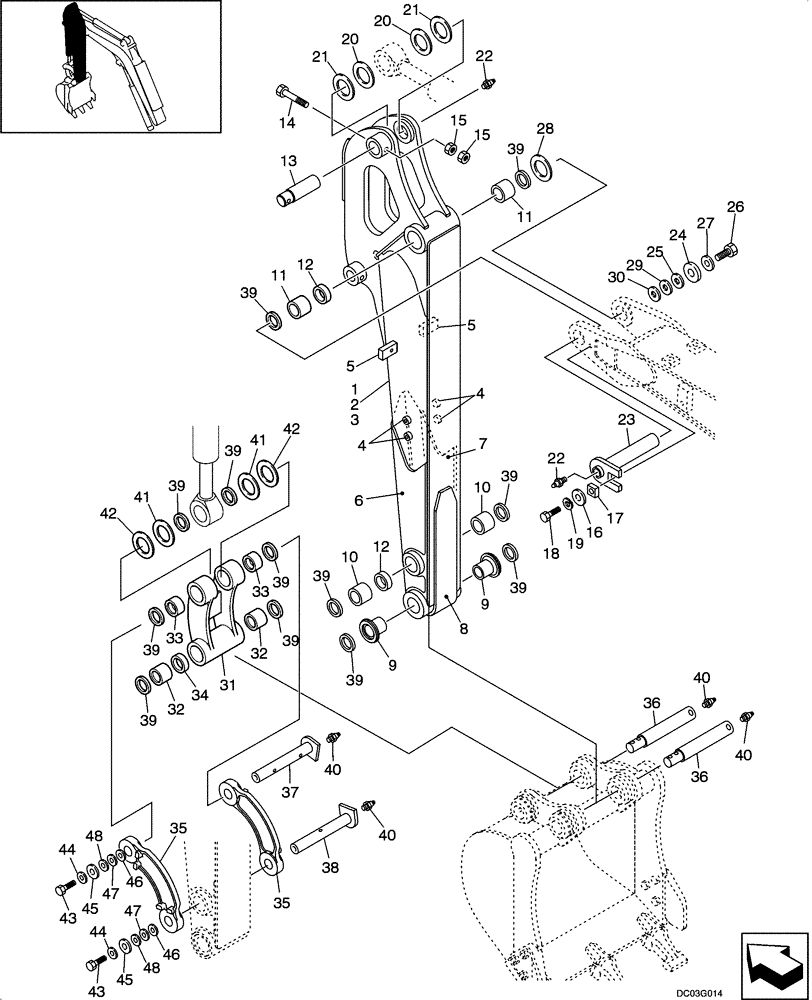

![Схема запчастей Case CX14 - (09-28[00]) - ARM ASSY (ASN PE01-00639) (09) - CHASSIS/ATTACHMENTS](https://partsell.ru/storage/images/casece/39989.png)
