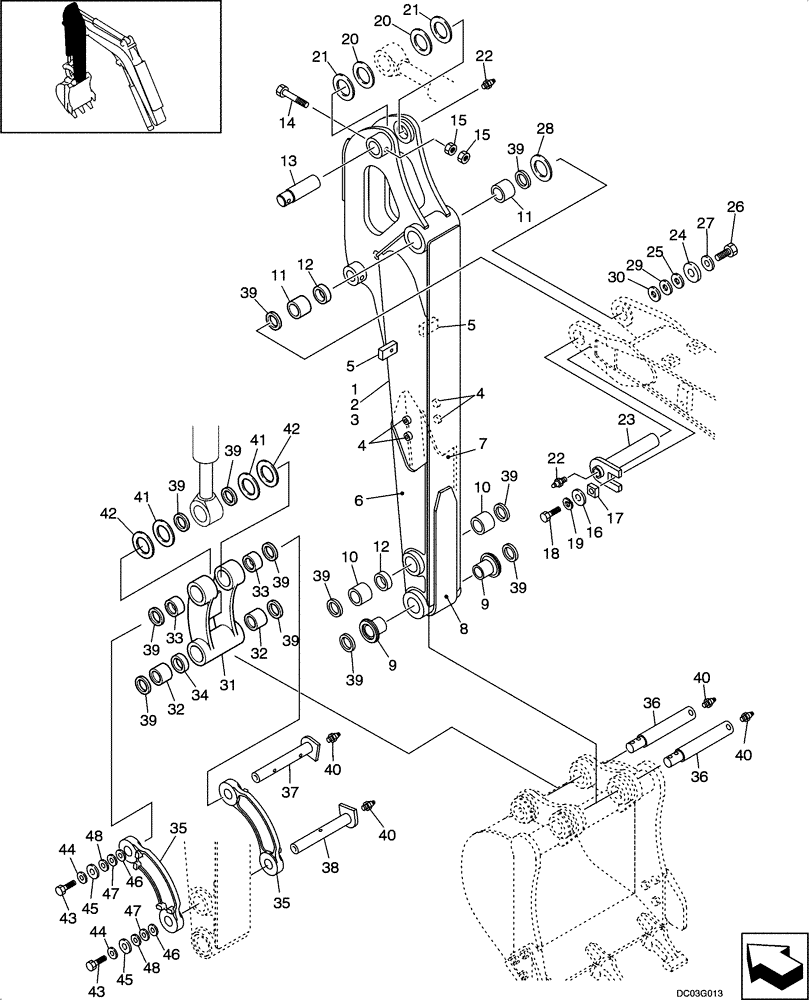

Запчасти Case CX14 (09-27[00]) - ARM ASSY (S/N PE01-01001 - 00638) (09) - CHASSIS/ATTACHMENTS

1

PE12B00010F1

ARM

Incl. 2 - 12

1шт.

2

PE12B00012P1

ARM

ARM Incl. 3 - 8

1шт.

3

PE12B00011P1

ARM, Long, Incl. 4 - 5

1шт.

4

PA12B01059P1

BLOCK

Tapped for S/N PE01-00101 - 00433

4шт.

4

PM12B01309P1

BLOCK

Tapped for ASN PE01-00434

4шт.

5

PA12B01081P1

BLOCK

Tapped for S/N PE01-00101 - 00418

2шт.

5

PA12B01095P1

BLOCK

Tapped for ASN PE01-00419

2шт.

6

PE12B01044P1

PLATE

1шт.

7

PE12B01045P1

PLATE

1шт.

8

PE12B01046P1

PLATE

1шт.

9

PE12B01038P1

BUSHING

2шт.

10

PU12B01092P1

BUSHING

2шт.

11

PU02B01081P1

BUSHING

2шт.

12

PE12B01036D1

COLLAR

2шт.

13

PE12B01061P1

PIN

1шт.

14

HS18C10065G2

CAPSCREW

1шт.

15

ZN18C10008

NUT

2шт.

16

PA12B01031P1

WASHER

1шт.

17

PA12B01030P1

COLLAR

1шт.

18

ZS18C10030

SCREW,Hex, M10 x 30mm

1шт.

19

ZW26X10000

LOCK WASHER

1шт.

20

PE12B01007D2

SHIM

2шт.

21

PE12B01007D3

SHIM

2шт.

22

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

2шт.

23

PE12B01058P1

PIN

1шт.

24

PA12B01066P1

WASHER

1шт.

25

PB02B01012D1

SHIM,0.5mm Thk

1шт.

26

ZS18C16030

SCREW,Hex, M16 x 30mm

1шт.

27

ZW16H16000

WASHER

1шт.

28

PA12B01077P1

SHIM,0.5mm Thk

1шт.

29

PB02B01012D2

SHIM,0.9mm Thk

1шт.

30

PB02B01012D3

SHIM,1.2mm Thk

1шт.

PE12B01069F1

LINK

Incl. 31 - 34

1шт.

31

PE12B01071P1

LINK

1шт.

32

PU12B01092P1

BUSHING

2шт.

33

PU12B01094P1

BUSHING

2шт.

34

PE12B01036D1

COLLAR

1шт.

35

PE12B01010P1

LINK

2шт.

36

PE12B01073P1

PIN

2шт.

37

PE12B01051P1

PIN

1шт.

38

PE12B01052P1

PIN

1шт.

39

PN54D01001D1

DUST CAP

12шт.

40

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

4шт.

41

PE12B01048D2

SHIM,1.0mm Thk

2шт.

42

PE12B01048D3

SHIM,0.5mm Thk

2шт.

43

ZS18C12025

SCREW,Hex, M12 x 25mm

2шт.

44

ZW16H12000

WASHER

2шт.

45

PE12B01057P1

WASHER

2шт.

46

PE12B01056D1

SHIM

2шт.

47

PE12B01056D2

SHIM

2шт.

48

PE12B01056D3

SHIM

, Serial Range: -ø

2шт.
