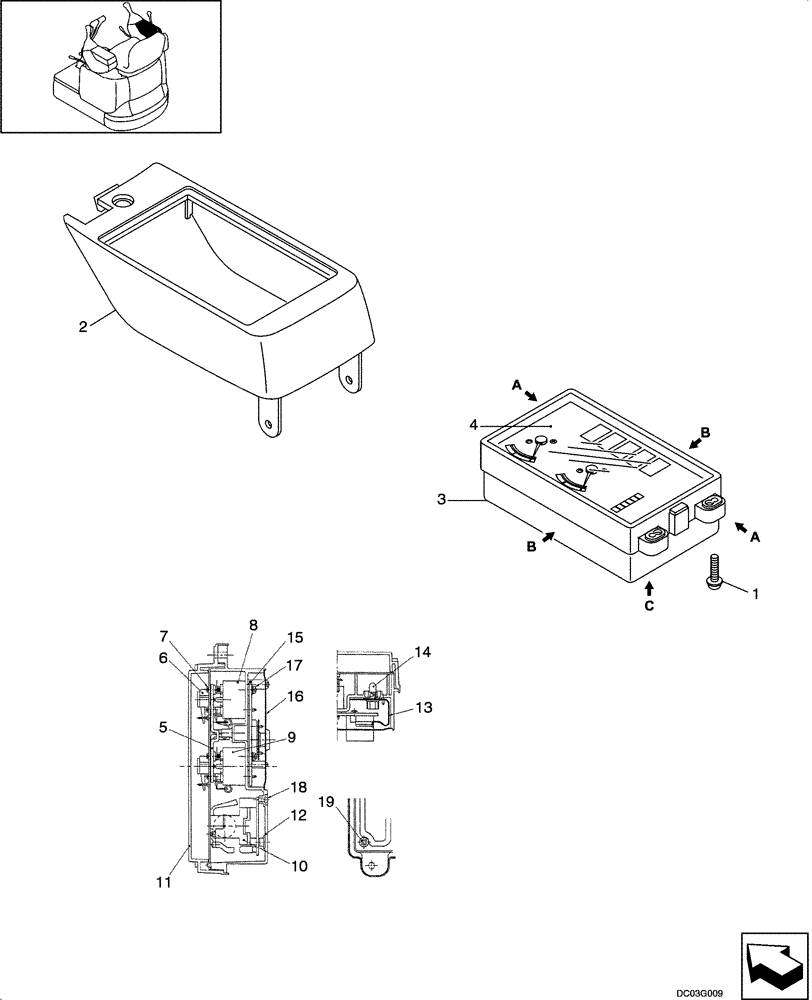

Запчасти Case CX14 (09-23[00]) - PANEL ASSY - RIGHT HAND (09) - CHASSIS/ATTACHMENTS
![Схема запчастей Case CX14 - (09-23[00]) - PANEL ASSY - RIGHT HAND (09) - CHASSIS/ATTACHMENTS](https://partsell.ru/storage/images/casece/1292971.png)
10
7
12
3
13
19
8
5
2
17
15
4
16
6
14
18
11
9
№
Артикул
Название
Примечание
Количество
PA17M00002F3
PANEL ASSY.
RIGHT HAND, Incl. 1 - 19
1шт.
1
ZM41C04020
BOLT
M4 x 20 mm
4шт.
2
PE17M01009D2
COVER
1шт.
3
PE59S00002F1
GAUGE
CLUSTER, Incl 4 - 19
1шт.
4
PE59S00002S001
PANEL
1шт.
5
PM59S00002S002
D PANEL
1шт.
6
PM59S00002S003
POINTER
2шт.
7
PM59S00002S004
SCREW
4шт.
8
PM59S00002S005
GAUGE
1шт.
9
PM59S00002S006
GAUGE
1шт.
10
PM59S00002S007
METER
1шт.
11
PM59S00002S008
GLASS
1шт.
12
PM59S00002S009
CASE
1шт.
13
PM59S00002S010
BOARD
1шт.
14
PM59S00002S011
LAMP
6шт.
15
PM59S00002S012
BOARD
1шт.
16
PM59S00002S013
COVER
1шт.
17
PM59S00002S014
SCREW
6шт.
18
PH59S00002S012
SCREW
3шт.
19
PM59S00002S016
SCREW
2шт.
