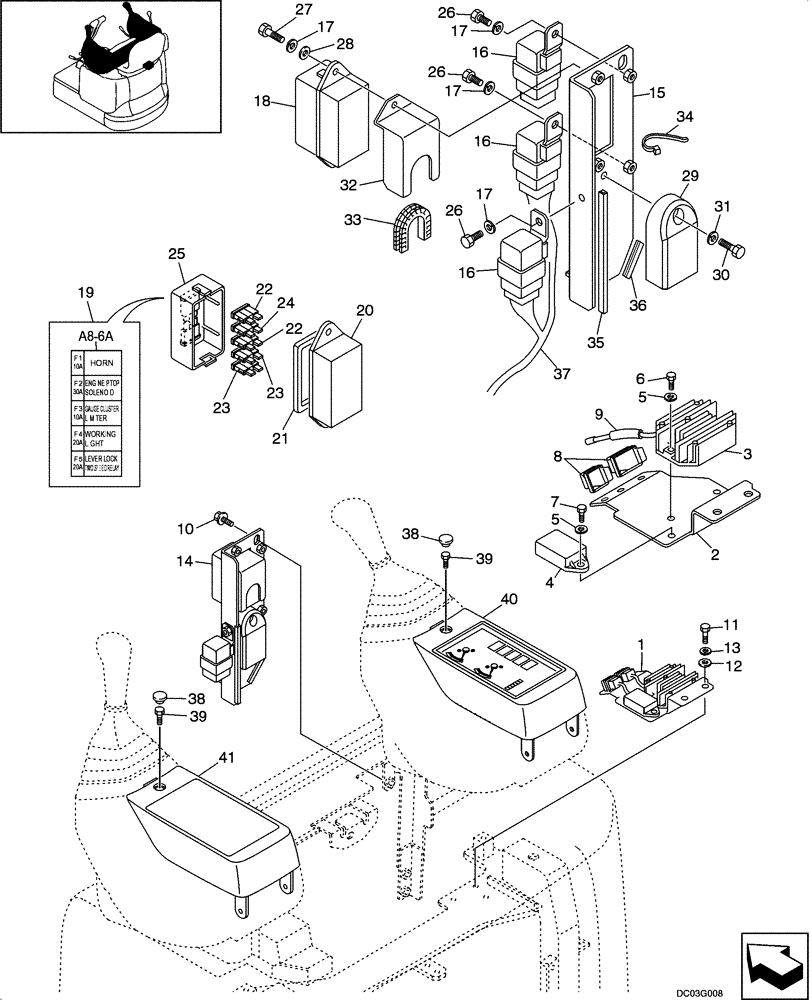

Запчасти Case CX14 (09-22[00]) - INSTRUMENT PANEL ASSY (09) - CHASSIS/ATTACHMENTS

1

PA24E00010F1

RELAY

Incl. 2 - 9

1шт.

2

PA24E01016P1

BRACKET

BRACKET

1шт.

3

PM13E01028P1

RELAY

1шт.

4

PH25S00002P1

TIMER

1шт.

5

ZW26X06000

LOCK WASHER

3шт.

6

ZS18C06025

SCREW,Hex, M6 x 25mm

2шт.

7

ZS18C06014

SCREW,Hex, M6 x 14mm

1шт.

8

PY01P01043D1

CABLE TIE,4.80mm W x 122mm L

2шт.

9

PU06C01020D9

TUBE

1шт.

10

ZM22C08016

BOLT

2шт.

11

ZS18C08016

SCREW,Hex, M8 x 16mm

2шт.

12

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

13

ZW26X08000

LOCK WASHER

2шт.

14

PA24E00009F4

RELAY

Incl. 15 - 37

1шт.

15

PA24E01015P1

BRACKET

BRACKET

1шт.

16

PY24S00006P1

RELAY

3шт.

17

ZW26X06000

LOCK WASHER

5шт.

18

PA73E00001F4

FUSE

Incl. 19 - 25

1шт.

19

PE73E01001P1

LABEL

1шт.

20

PA73E01002S001

BASE

BASE

1шт.

21

PA73E01002S002

PACKING

PACKING

1шт.

22

2479R655S8

FUSE,10 Amp

10A

3шт.

23

2479R655S9

FUSE,20 Amp

20A

3шт.

24

2479R655S11

FUSE,30 Amp

30A

1шт.

25

PA73E01002S003

COVER

1шт.

26

ZS18C06010

SCREW,Hex, M6 x 10mm

3шт.

27

ZS18C06012

SCREW,Hex, M6 x 12mm

2шт.

28

ZW16X06000

WASHER

2шт.

29

PA24S00002P2

RELAY

1шт.

30

ZS23C06022

CAPSCREW,Hex Socket Head, M6 x 22mm

1шт.

31

ZW26K06000

LOCK WASHER

1шт.

32

PA24E01017P1

COVER

COVER

1шт.

33

PA22C01024D2

PANEL

TRIM

1шт.

34

PY01P01043D5

CABLE TIE,301mm L

1шт.

35

PA22C01024D3

TRIM PANEL

1шт.

36

PA22C01024D4

PANEL

TRIM

1шт.

37

PE13E01042P1

HARNESS

1шт.

PA17M0CC01F4

PANEL ASSY., Incl. 38 - 41

1шт.

38

PE17M01011D2

CAP

2шт.

39

ZM46C05016

BOLT,Phillip, M5 x 0.8 x 15mm

2шт.

40

PA17M00002F3

PANEL ASSY.

R/H, See Figure 9 -23

1шт.

41

PE17M01012D2

COVER

1шт.
