(09-12[00]) - SEAT AND MOUNTING (ASN PE01-00601)

Запчасти Case CX14 (09-12[00]) - SEAT AND MOUNTING (ASN PE01-00601) (09) - CHASSIS/ATTACHMENTS

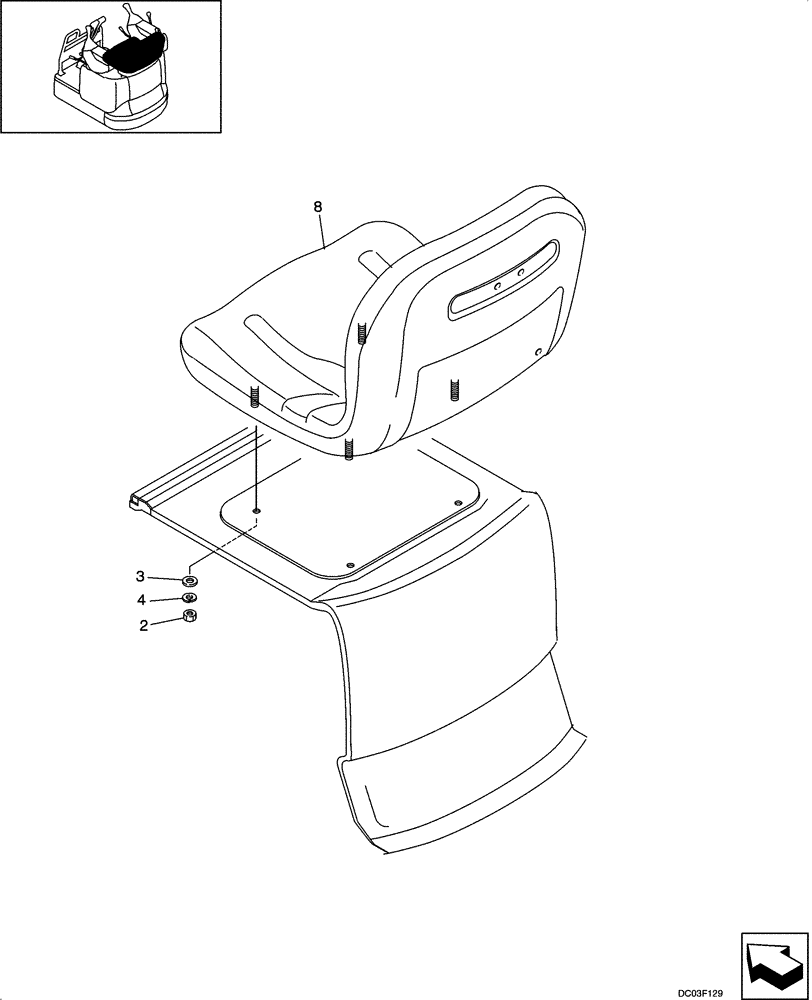

Схема запчастей Case CX14 - (09-12[00]) - SEAT AND MOUNTING (ASN PE01-00601) (09) - CHASSIS/ATTACHMENTS
4
8
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

ZN18C08007

NUT

4шт.

3

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

4шт.

4

ZW26X08000

LOCK WASHER

4шт.

8

PM25M00011F2

SEAT ASSY.

1шт.
