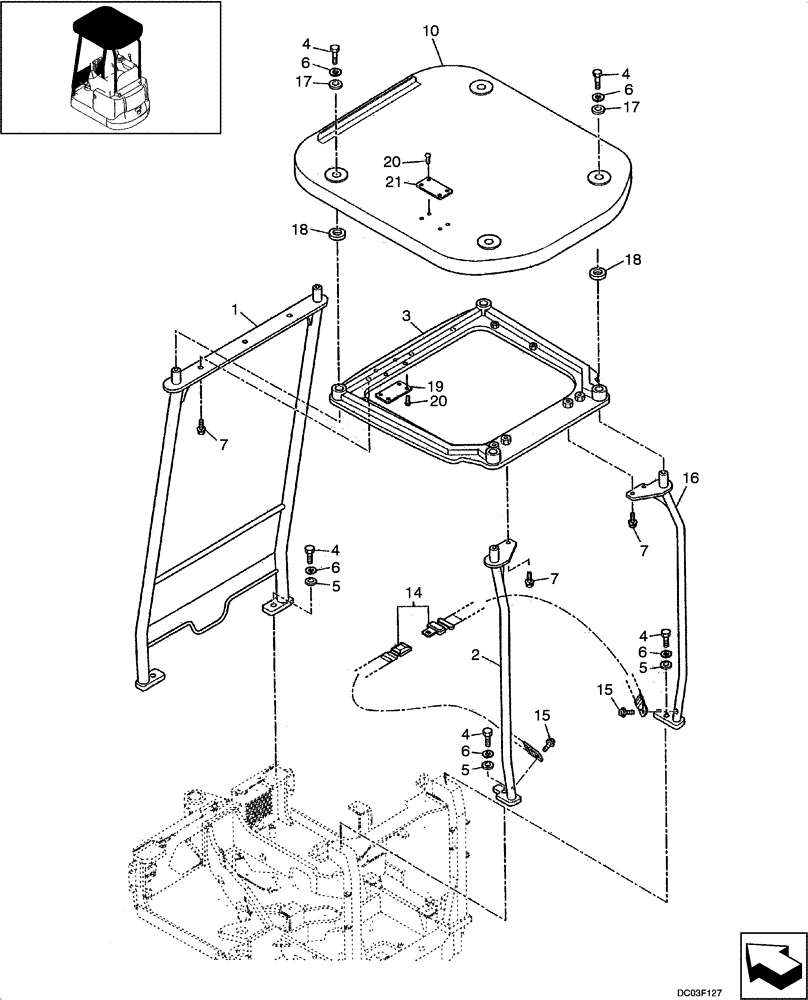

Запчасти Case CX14 (09-10[00]) - CANOPY (09) - CHASSIS/ATTACHMENTS

PE06C01021F2

SUPPORT

Inc. 1 - 21

1шт.

1

PE06C01016P1

SUPPORT

1шт.

2

PE06C01018P1

SUPPORT

1шт.

3

PE06C01028P1

PLATE

1шт.

4

ZS18C16040

SCREW,Hex, M16 x 40mm

8шт.

5

ZW16H16000

WASHER

4шт.

6

ZW26X16000

LOCK WASHER

8шт.

7

PM06C01045D3

BOLT

7шт.

10

PE06C01020P1

GUARD

1шт.

14

24100R106F1

SEAT BELT,2" Belt

1шт.

15

ZM22C10025

BOLT

1шт.

16

PE06C01046P1

SUPPORT

1шт.

17

YJ03M01031P1

WASHER

4шт.

18

PE06C01047P1

COLLAR

4шт.

19

NSS

NOT SOLD SEPARAT

Label

1шт.

20

PE06C01033P1

RIVET

8шт.

21

PV20T01018P1

IDENTITY PLATE

1шт.
