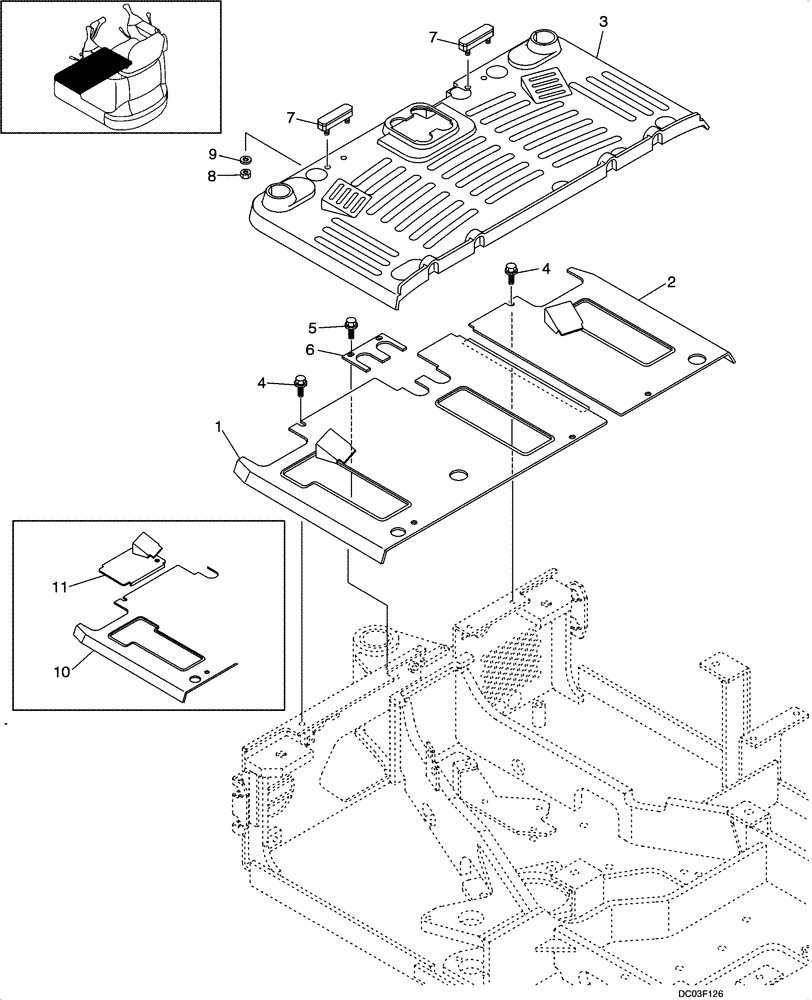

Запчасти Case CX14 (09-09[00]) - PLATES, FLOOR (09) - CHASSIS/ATTACHMENTS

1

PE03M01040P2

PLATE

Floor for Std. Machines Only

1шт.

2

PE03M01041P1

PLATE

1шт.

3

PE26M00002P2

FLOOR MAT

1шт.

4

PA03M01093D2

BOLT

6шт.

5

PA41C01006D1

BOLT

2шт.

6

PA03M01117P1

COVER

1шт.

7

PA26M01001P1

STOP

2шт.

8

ZN16C05004

NUT

4шт.

9

PA26M01004P1

WASHER

4шт.

10

PE03M00021P1

PLATE

1шт.

11

PE03M01104P1

PLATE

1шт.
