(02-02[00]) - ENGINE ASSY

Запчасти Case CX14 (02-02[00]) - ENGINE ASSY (02) - ENGINE

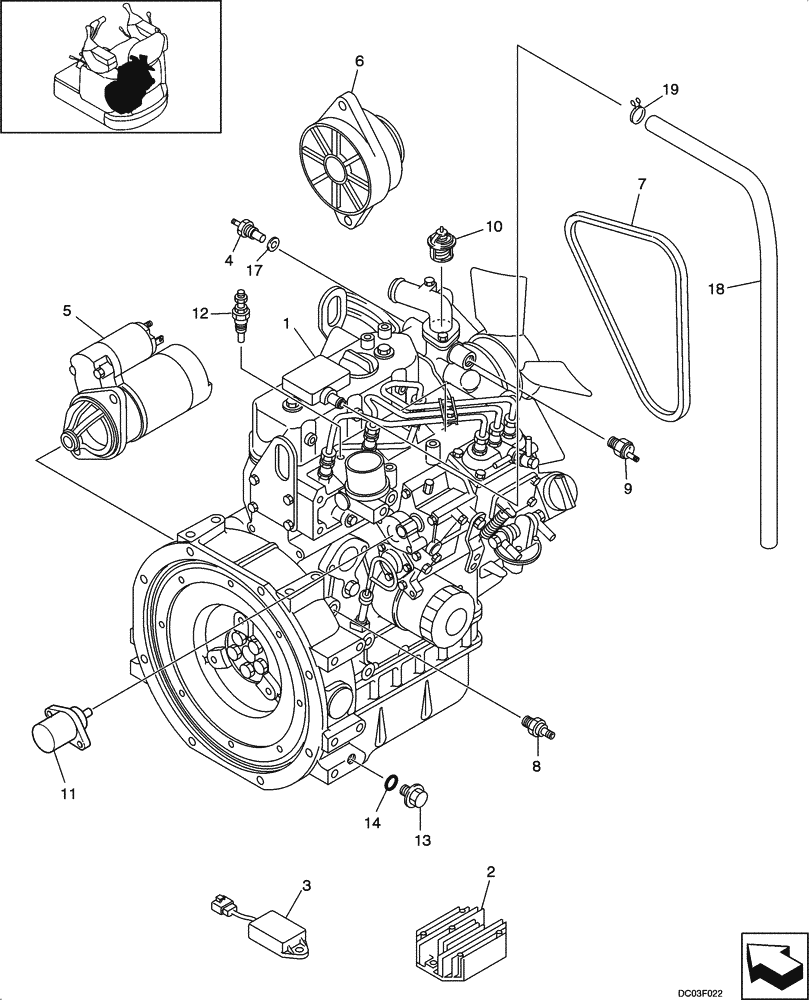

Схема запчастей Case CX14 - (02-02[00]) - ENGINE ASSY (02) - ENGINE
5
9
4
3
14
12
13
1
11
2
10
6
8
17
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

YANMAR DIESEL ENGINE

1шт.

.

3TNE68 - YB

1шт.

1

PE02P00001F3

ENGINE

See Figure 02 -01

1шт.

1

PE02P00001F4

ENGINE

See Figure 02 -01

1шт.

2

PM13E01028P1

RELAY

(Used for Current Limiter) See Figure 09 -22

1шт.

2

VV11965377710

RELAY

(Used for Current Limiter) See Figure 09 -22

1шт.

3

PH25S00002P1

TIMER

See Figure 09 -22

1шт.

3

VV12921177920

TIMER

See Figure 09 -22

1шт.

4

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge) See Figure 04 -03

1шт.

4

VV12425049351

SENSOR

(Used for Engine Temp Gauge)

1шт.

5

VV11922677010

STARTING MOTOR

1шт.

6

VV12915077202

ALTERNATOR

1шт.

7

VV11922542290

V-BELT

1шт.

8

VV12416039450

PRESSURE SWITCH

(Used for Engine Oil Pressure)

1шт.

9

VV12125044901

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

(Used for Engine Coolent Temp Warning)

1шт.

10

VV11926049800

THERMOSTAT

1шт.

11

VV11923366511

SOLENOID

(Used for Stop - Fuel Shut-Off)

1шт.

12

VV12979577800

GLOW PLUG

3шт.

13

VV12140001640

DRAIN PLUG

1шт.

14

VV24311000180

O-RING

1шт.

17

PA13E01027P1

PACKING

See Figure 04 -03

1шт.

17

VV12446544950

GASKET

2шт.

18

PM02P01048D1

HOSE ASSY.

1шт.

19

ZC16X01800

CLIP

1шт.
