(21.100.AB) - TRANSMISSION OIL FILTER, 2WD AND 4WD

Запчасти Case 570NXT (21.100.AB) - TRANSMISSION OIL FILTER, 2WD AND 4WD (21) - TRANSMISSION

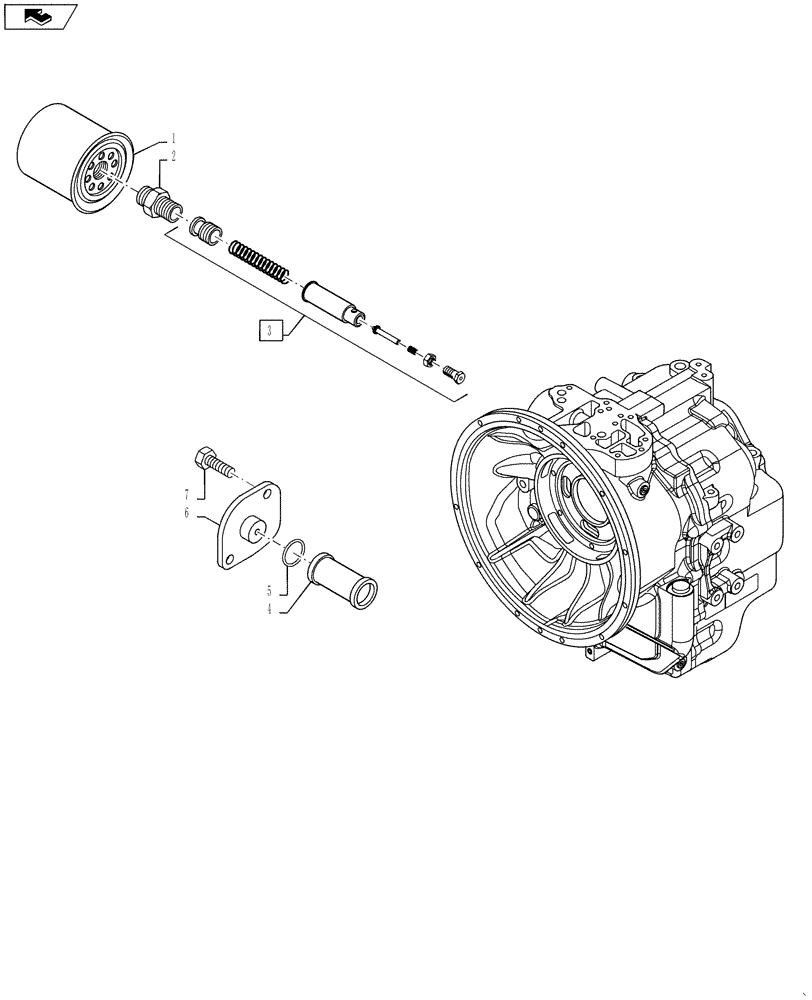

Схема запчастей Case 570NXT - (21.100.AB) - TRANSMISSION OIL FILTER, 2WD AND 4WD (21) - TRANSMISSION
4
home
2
3
1
7
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

1шт.

2

181202A1

FITTING

Oil Filter Connection

1шт.

3

84127891

KIT

Valve

1шт.

4

278534A1

FILTER SCREEN

Suction

1шт.

5

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

1шт.

6

84301332

COVER

Filter Screen

1шт.

7

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.
