(21.100.AA) - TRANSMISSION OIL PUMP, 2WD AND 4WD

Запчасти Case 570NXT (21.100.AA) - TRANSMISSION OIL PUMP, 2WD AND 4WD (21) - TRANSMISSION

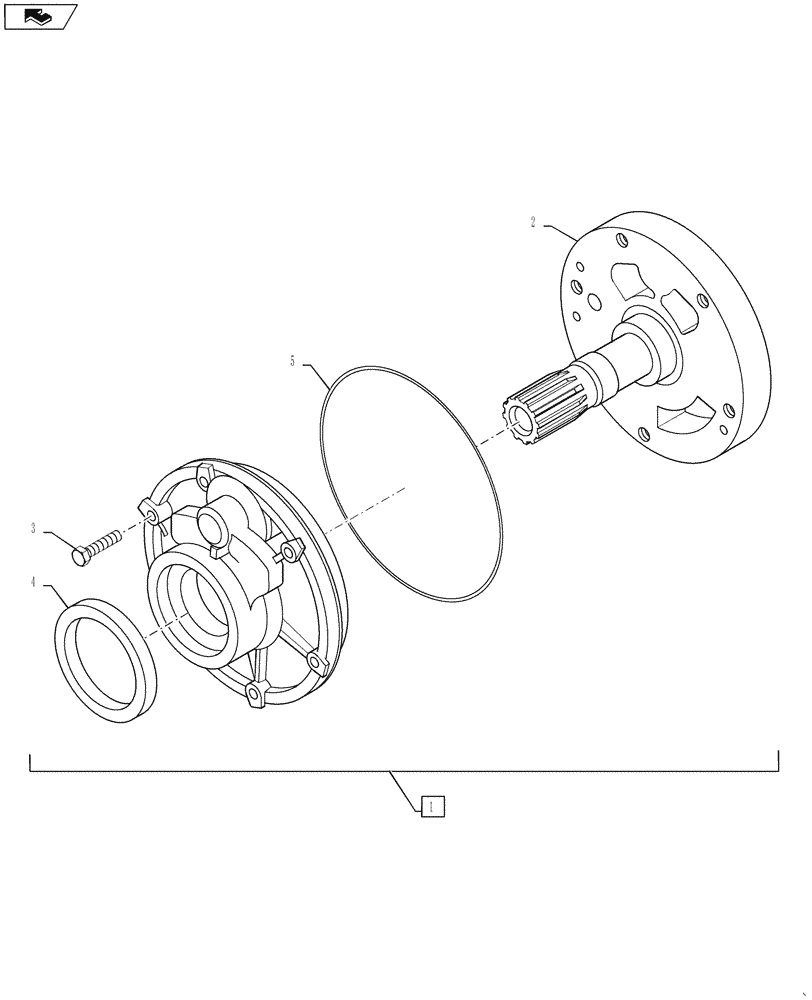

Схема запчастей Case 570NXT - (21.100.AA) - TRANSMISSION OIL PUMP, 2WD AND 4WD (21) - TRANSMISSION
5
2
3
home
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84209030

PUMP

Assembly, Incl 2 - 5

1шт.

2

87429970

PUMP

Oil

1шт.

2

87429970R

REMAN-HYD PUMP

Oil

1шт.

2

87429970C

CORE-HYDRAULIC PUMP

Oil

1шт.

3

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

6шт.

4

87429971

OIL SEAL

Charge Pump

1шт.

5

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

1шт.

Выбрано товаров: 7
