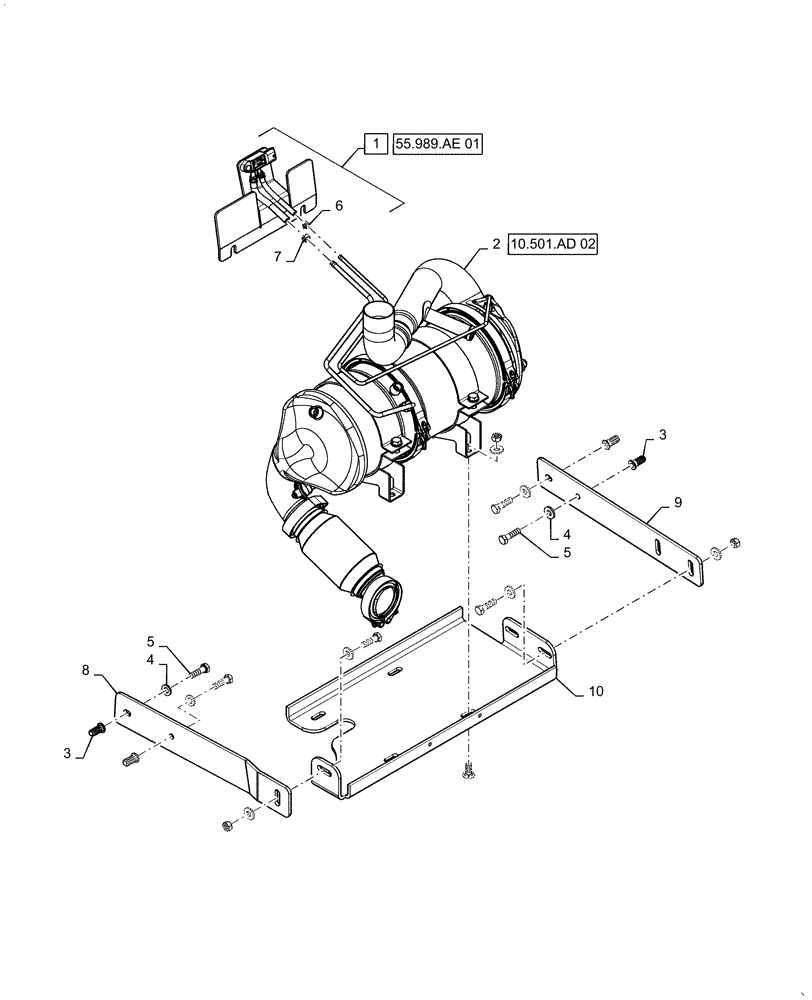

Запчасти Case 570NXT (10.501.AD[01]) - DOC/DPF MUFFLER MOUNTING PARTS (10) - ENGINE

1

84286249

SENSOR

Presure, Differential

1шт.

2

84541755

SPARK ARRESTER,Aspirated

Muffler

1шт.

3

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

4шт.

4

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

6

84545613

CLAMP

Heater Hose

2шт.

7

84538538

CLAMP

Heater Hose

2шт.

8

84413387

BRACKET

Right

1шт.

9

84413384

BRACKET

Left

1шт.

10

84413388

PLATFORM

Center

1шт.
