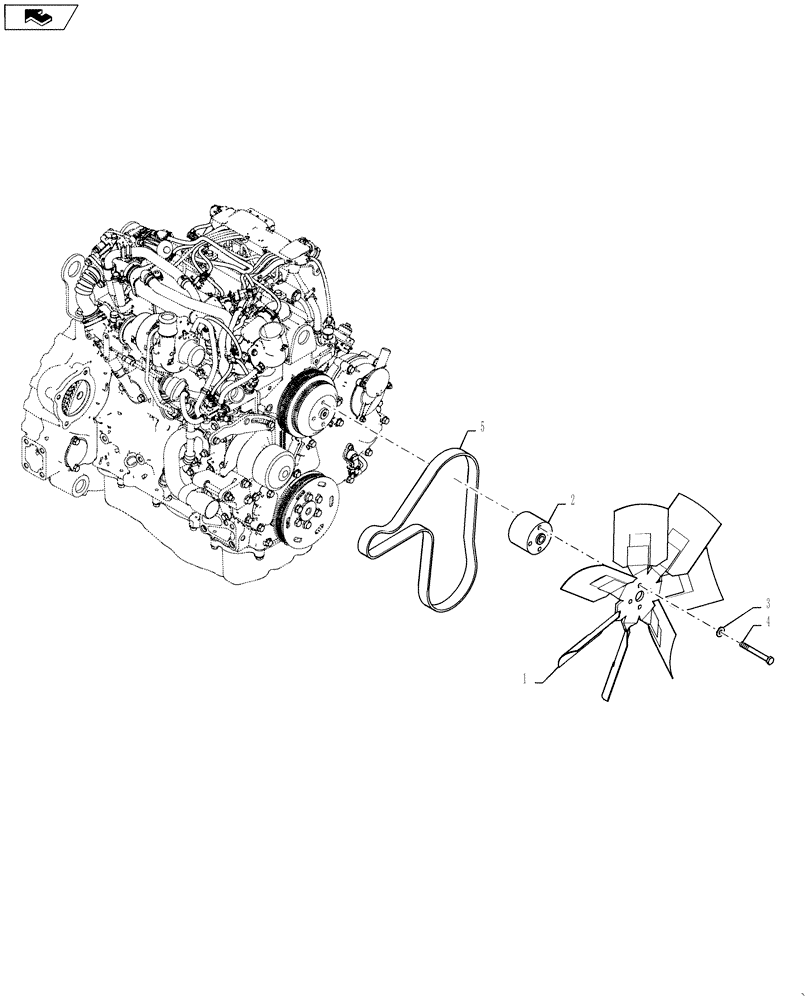

Запчасти Case 570NXT (10.414.AC) - ENGINE FAN BELT DRIVE (10) - ENGINE

1

228133A2

FAN,7 Blades, 20 OD, CW Rotation

500 Dia

1шт.

2

87353191

SPACER

Fan

1шт.

3

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10

4шт.

4

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

4шт.

5

84522330

V-BELT,28.88mm W x 1453.2mm L, 8 Ribs

V Ribbed

1шт.
