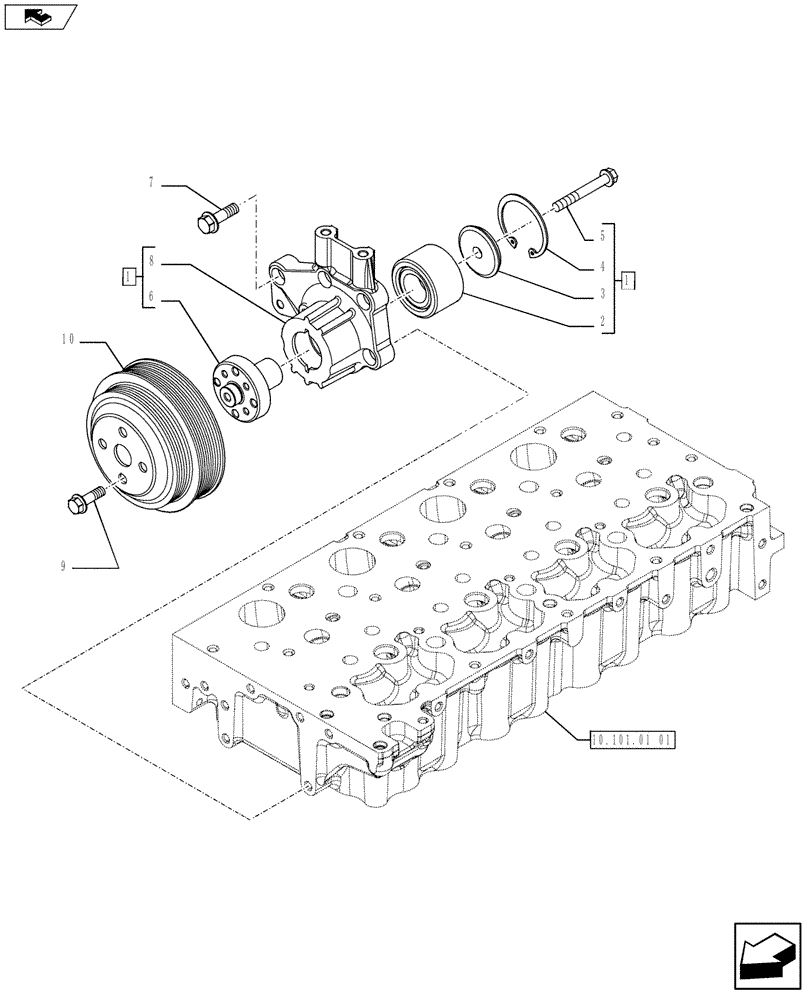

Запчасти Case 570NXT (10.414.03) - BELT PULLEY DRIVE & COVER (5801440012) (10) - ENGINE

1

5801393171

BRACKET, SUPPORTING

ASSY

1шт.

2

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

3

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.

4

32324

SNAP RING,2.44", Int, #244

1шт.

5

16592924

SCREW,M10 x 1.5 x 80mm

1шт.

6

4892426

HUB

1шт.

7

16673735

BOLT,Hex, M8 x 1.25 x 25mm

5шт.

8

NSS

NOT SOLD SEPARAT

1шт.

9

18139424

SCREW,Hex, M10 x 20mm

4шт.

10

5801420820

PULLEY

1шт.
