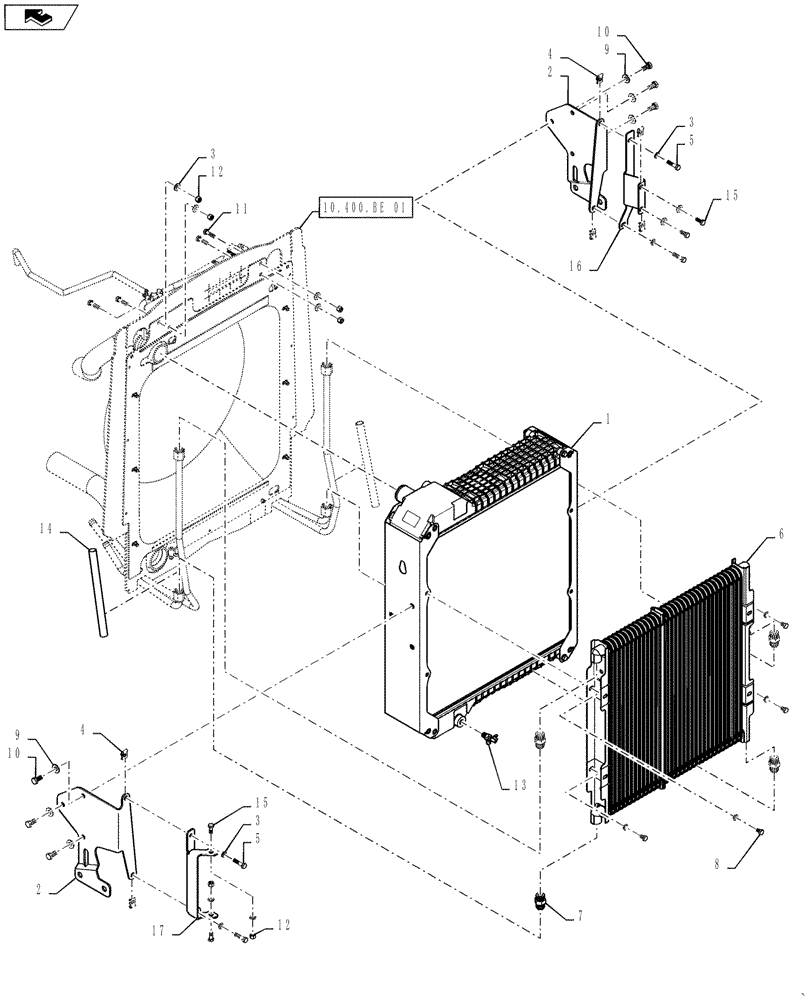

Запчасти Case 570NXT (10.400.BE) - ENGINE COOLING SYSTEM (10) - ENGINE

1

87576645

RADIATOR

5 Row

1шт.

2

87602286

BRACKET

RH Radiator Support

1шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

4

833-40408

NUT,M8, U

Spring

4шт.

5

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

6

87441876

OIL COOLER

Hydraulic

1шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl O-Ring

2шт.

8

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

9

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

10

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

13

IH76904

VALVE

Drain Cock

1шт.

13

47819617

DRAINCOCK/TAP SUPPLY

W/Pre-appliedThread Sealant

1шт.

14

87311219

HOSE PROTECTION,16.80 mm ID x 250.00 mm

2шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

16

87606979

BRACKET

LH Condenser Support

1шт.

17

87606977

BRACKET, PIVOT

Condenser

1шт.
