Запчасти Case 570NXT (10.400.BE[01]) - ENGINE COOLING SYSTEM (10) - ENGINE

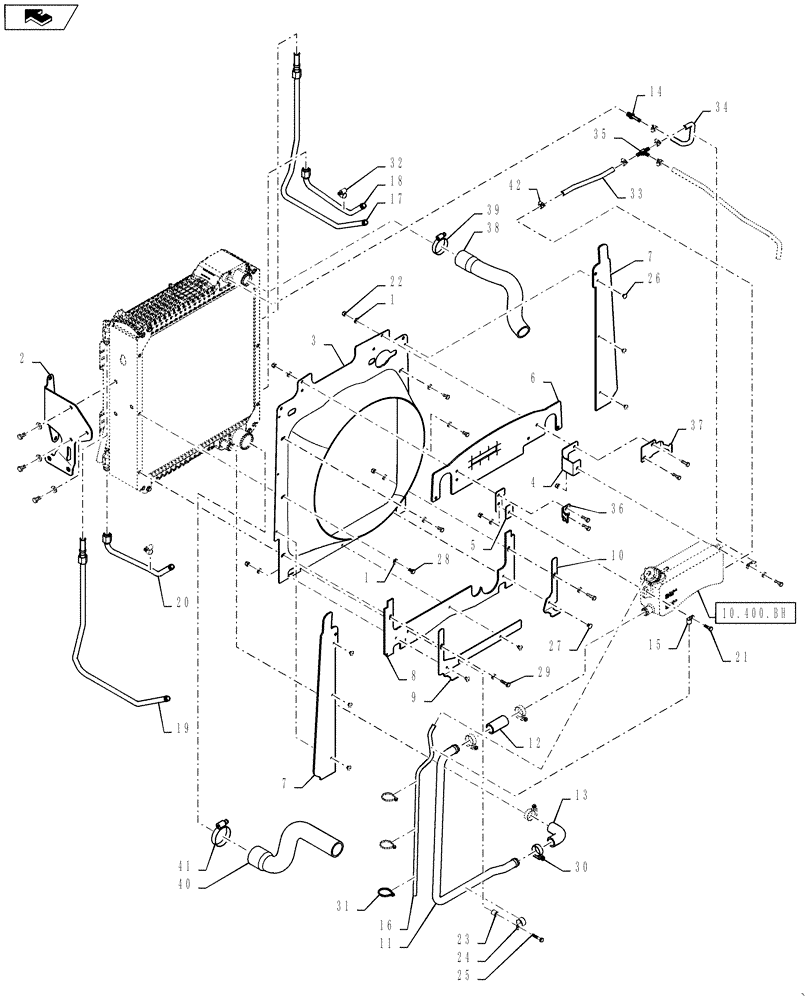

Схема запчастей Case 570NXT - (10.400.BE[01]) - ENGINE COOLING SYSTEM (10) - ENGINE
24
20
35
36
5
41
1
31
42
26
12
13
32
14
6
7
30
33
37
9
home
19
15
18
10.400.bh
8
29
17
34
10
7
27
3
21
38
23
28
25
39
4
2
16
40
11
1
22

Артикул

Название

Примечание

Количество

1

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

8.80 X 17

1шт.

2

87602287

BRACKET

LH Radiator

1шт.

3

84350176

SHROUD

Fan

1шт.

4

84387348

BRACKET

Bottle Retaining RH

1шт.

5

84387349

BRACKET

Bottle Retaing LH

1шт.

6

84485920

SEAL,616mm L

Top Radiator

1шт.

7

84403324

RUBBER SEAL,664mm L

Side Radiator

2шт.

8

87434978

INSULATOR

Lower Radiator

1шт.

9

87446082

RETAINING PLATE,390mm x 195mm x 43mm L

LH Lower Shroud

1шт.

10

87446081

RETAINING PLATE,195mm x 62mm x 43mm L

RH Lower Shroud

1шт.

11

87557237

TUBE,1" OD

Deaeration

1шт.

12

87367622

HOSE,25.40 mm ID x 60.00 mm, SAE 20R3 CLASS D-1 Or D-2

Tank To Tube

1шт.

13

87454376

HOSE,25mm ID, 29.95mm OD, 90 Degree

Deaeration End

1шт.

14

87301325

FITTING,5/16" Hose X 1/4" NPTF Beaded

Stem

1шт.

15

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

16

87616934

HOSE,6.35mm ID x 750mm L, SAE 30R6

Overflow

1шт.

17

84485233

TUBE

RH Upper Cooler

1шт.

18

84485235

TUBE

RH Lower Cooler

1шт.

19

84485237

TUBE

LH Upper Cooler

1шт.

20

84485239

TUBE

LH Lower Cooler

1шт.

21

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

9шт.

23

87418360

SPACER,9.8mm ID x 16mm OD x 16mm W

8mm X 16mm

1шт.

24

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

25

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

26

87301355

RIVET,Pop, 3/16" x .575"

Pop

6шт.

27

87301356

RIVET,Pop, 3/16" x .700"

Pop

3шт.

28

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

4шт.

29

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

30

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

31

L11541

CABLE TIE,203.2mm L, Nylon

7 - 8 Inch Black

3шт.

32

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

33

84415773

Bottle To Tee

2шт.

34

84415776

Bottle To Tee

1шт.

35

87721028

TEE

Fitting

1шт.

36

84387500

BRACKET

LH Tube Support

1шт.

37

84387496

BRACKET

RH Tube Support

1шт.

38

84329358

RADIATOR HOSE

Upper

1шт.

39

87647029

HOSE CLAMP,40-64mm

40 - 64 mm

1шт.

40

84474837

RADIATOR HOSE

Lower

1шт.

41

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

1шт.

42

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

5шт.

Выбрано товаров: 42
