Запчасти Case 570NXT (10.310.AE) - AFTERCOOLER HOSES (10) - ENGINE

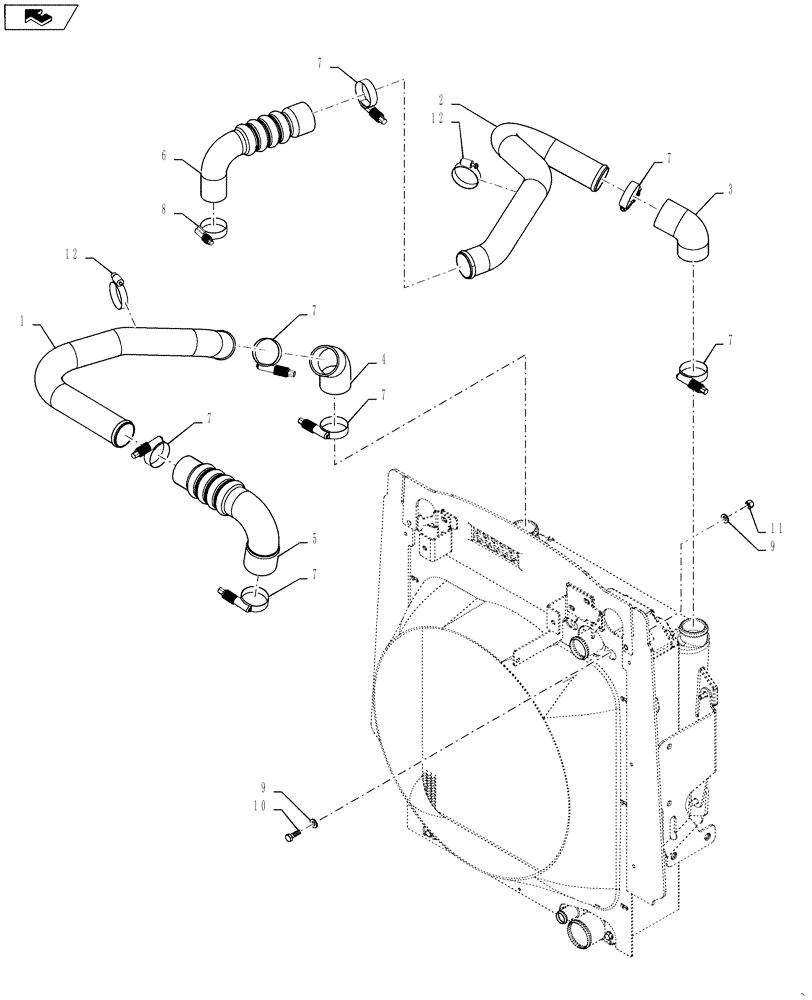

Схема запчастей Case 570NXT - (10.310.AE) - AFTERCOOLER HOSES (10) - ENGINE
4
7
8
6
1
7
12
7
7
9
3
9
7
7
home
7
12
10
5
2
11

Артикул

Название

Примечание

Количество

1

84329350

TUBE

LH Cooler

1шт.

2

84329351

TUBE

RH Cooler

1шт.

3

47373649

ELBOW,50.8mm ID x 121mm L

Inlet

1шт.

4

47373646

ELBOW,50.8mm ID x 121mm L

Outlet

1шт.

5

84329353

AIR HOSE,55mm ID x 221.86mm L, Rubber

Intake

1шт.

6

84329352

AIR HOSE,40.5mm ID x 207.74mm L, Rubber

Intake

1шт.

7

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque

7шт.

8

353036A1

HOSE CLAMP,32mm - 54mm

Hose Constant Torque

1шт.

9

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

M8

4шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

12

87647029

HOSE CLAMP,40-64mm

40 - 64 mm

2шт.

Выбрано товаров: 12
