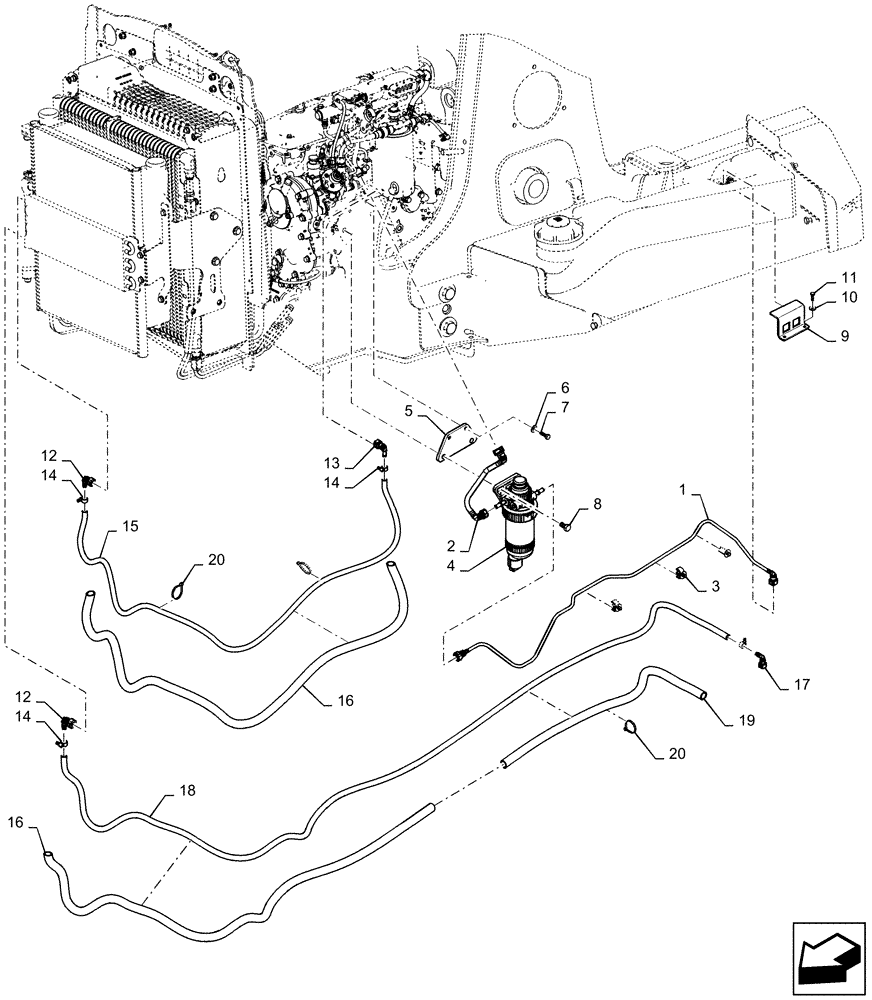

Запчасти Case 570NXT (10.216.BA) - FUEL LINES (10) - ENGINE

1

84391638

RIGID TUBE

Suction Tank To filter

1шт.

2

84391629

RIGID TUBE

Suction Filter To Engine

1шт.

3

84298475

HOSE CLAMP

Dual Hose

6шт.

4

84392298

FILTER

Assy

1шт.

4

87803444

FUEL FILTER,79.2mm OD x 109.2mm L

Element

1шт.

5

47432274

PLATE

Fuel Filter Mounting

1шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

8

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

9

84498297

GUARD

Return Cooler To Splice

1шт.

10

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

Suction Engine To Cooler

1шт.

11

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Return Splice To Tank

1шт.

12

84532958

FITTING,9.49mm ID, 3/8" OD, 90 Degree

Dual Hose

3шт.

13

84425860

FITTING,90 Degree, for Fuel Hose 9.5mm ID

1шт.

14

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

4шт.

15

47601009

HOSE,9.53mm ID, 1880mm L

Cooler to Filter

1шт.

16

47600620

GUARD

2шт.

17

47551317

FITTING,90 Degree, for Fuel Hose 9.5mm ID

1шт.

18

47609475

HOSE

Cooler to Fuel Tank

1шт.

19

87491621

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

3шт.
