Запчасти Case 570NXT (10.216.AI) - FUEL TANK (10) - ENGINE

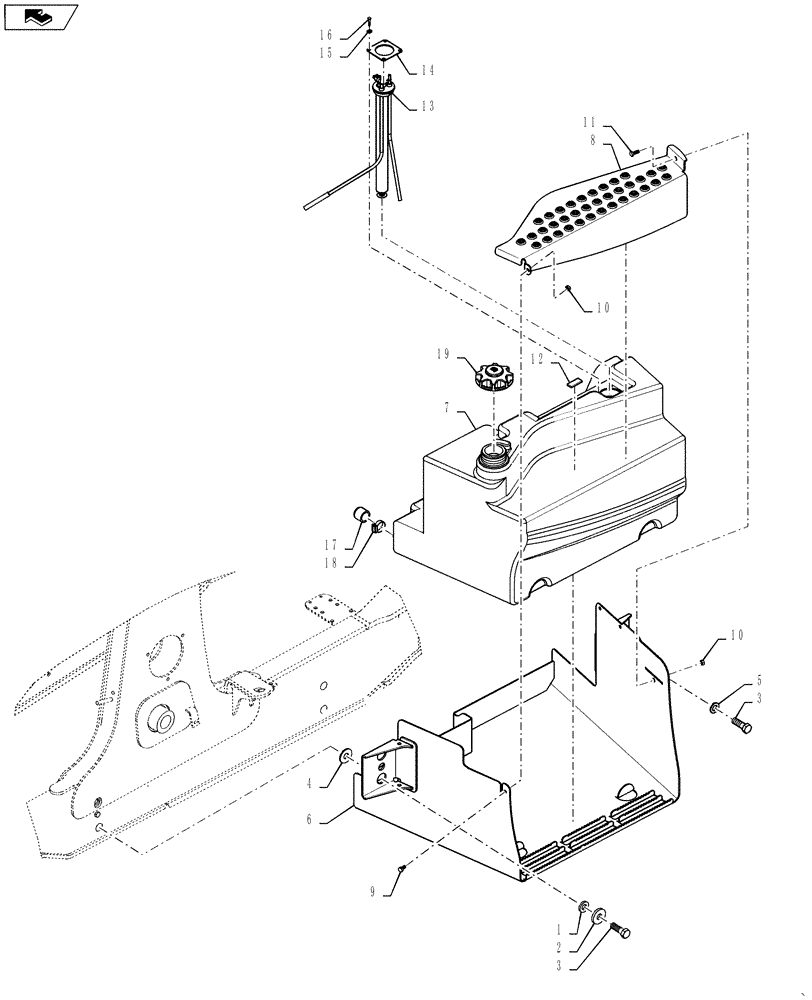

Схема запчастей Case 570NXT - (10.216.AI) - FUEL TANK (10) - ENGINE
2
8
14
12
3
home
15
16
9
17
3
11
10
4
10
6
19
1
5
13
18
7

Артикул

Название

Примечание

Количество

1

185926A1

SPACER,21mm x 40mm x 6.6mm Th

Fuel Tank

2шт.

2

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

54mm Heat Treated

2шт.

3

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

4

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

Tank

1шт.

5

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

M20

2шт.

6

84371937

PLATE

Case Power Tan

1шт.

7

84512583

FUEL TANK

42 Gallon

1шт.

8

47381142

PLATE

Fuel Tank Cover Case Power Tan

1шт.

9

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

12

414092A1

SEALING STRIP,100mm

Storage Box

1шт.

13

84287552

SENDER UNIT

Sender Fuel

1шт.

13

84485157

SEAL

Seal Incl with Sending Unit

1шт.

13

84292400

WIRE HARNESS

Harness Incl with Sending Unit

1шт.

14

84415880

RING,64mm OD, 90mm x 90mm L

Fuel Sender Ring

1шт.

15

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

M8

4шт.

16

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

17

83998666

CAP

Fuel Tube

1шт.

17

47681952

PLUG,Female

Replaced 83998666

1шт.

18

82012726

HOSE CLAMP,38mm - 50mm, Worm Gear

38 X 50 mm Wormgear

1шт.

19

84293447

CAP,128.7mm D

Fuel

1шт.

Выбрано товаров: 22
