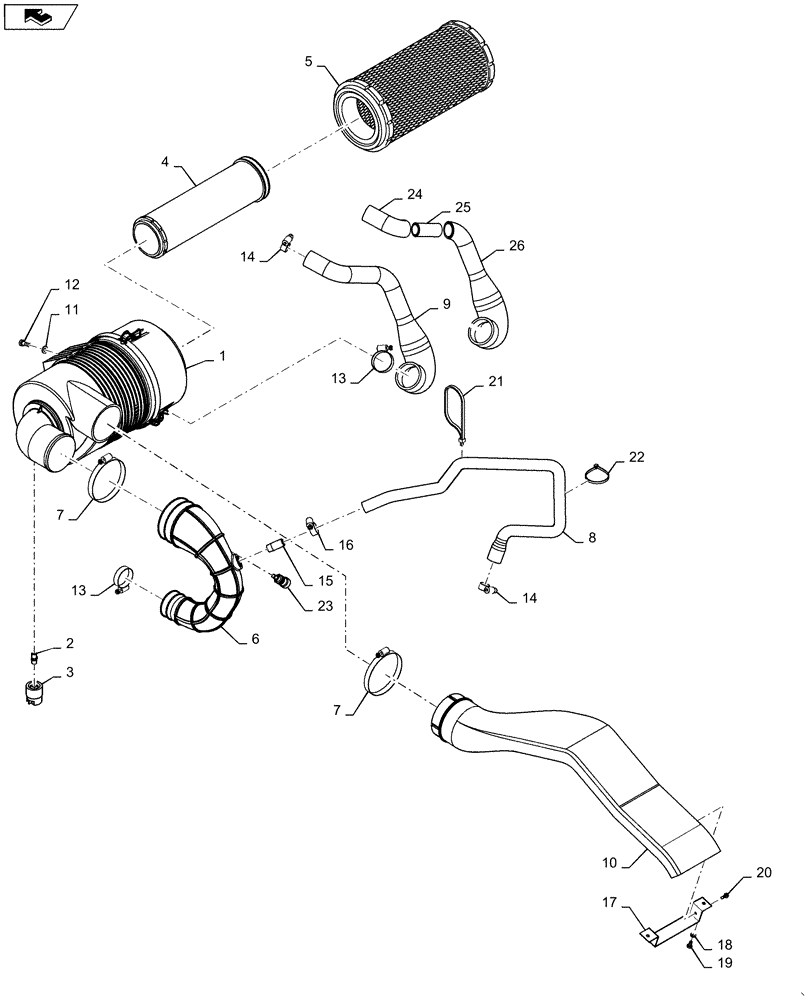

Запчасти Case 570NXT (10.202.AB) - AIR CLEANER ASSEMBLY (10) - ENGINE

1

84375347

AIR CLEANER

Assembly

1шт.

2

86976679

ADAPTER

Air Cleaner

1шт.

3

292740A1

RESTRICTION SWITCH

Air

1шт.

4

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Element Secondary

1шт.

5

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Element Primary

1шт.

6

84422162

HOSE

Air Cleaner

1шт.

7

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

8

84421414

HOSE

Air Intake

1шт.

9

84579227

HOSE

Aspiration, Years: -01-JAN-14

1шт.

10

84280287

AIR DUCT

Intake

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

13

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

14

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

15

L17985

FITTING,3/8" - 18 NPT

Connector

1шт.

16

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

1шт.

17

84558073

BRACKET

Air Cleaner

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

20

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

15 Inch Nylon

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

7 - 8 Inch Nylon Black

1шт.

23

84539252

SENSOR

Air Temerature

1шт.

24

47452268

HYDRAULIC HOSE

, Start Year: 01-JAN-14

1шт.

25

47452283

TUBE

, Start Year: 01-JAN-14

1шт.

26

47452269

HYDRAULIC HOSE

, Start Year: 01-JAN-14

1шт.
