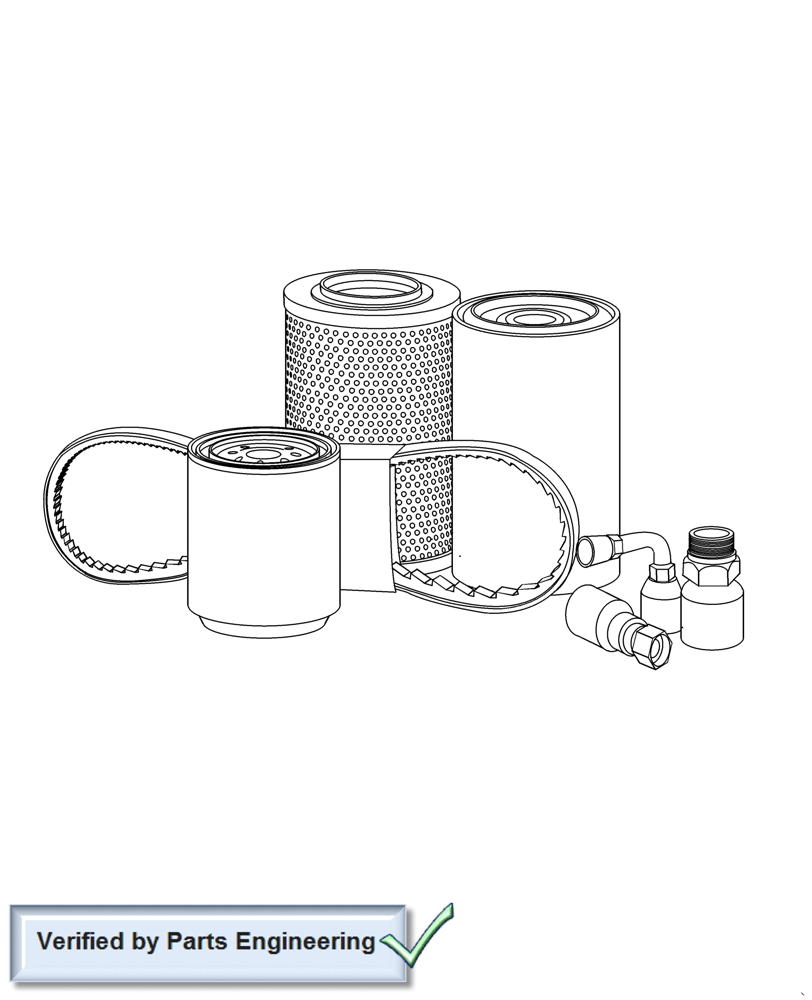

Запчасти Case 570NXT (05.100.01) - INITIAL STOCKING LIST, LIST A (05) - SERVICE & MAINTENANCE

1

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Spin On

1шт.

2

139768A1

FILTER, ELEMENT

Air

2шт.

3

48138563

Spin On

ENGINE OIL FILTER

1шт.

4

84255607

HYDRAULIC OIL FILTER,Spin-on, M87 x 2.5, 98.8mm OD x 239.8mm L

Filter Hydraulic

1шт.

5

84278184

BELT,28.28mm W x 1470mm L, 8 Ribs

V Style Ribbed

1шт.

6

84534796

ELEMENT,Spin-on, M20 x 1.5, 96mm OD x 195mm L

Element

1шт.

7

84591722

V-BELT,14.25mm W x 1165mm L, 4 Ribs

A/C

1шт.

8

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary

1шт.

9

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary

1шт.

10

87803444

FUEL FILTER,79.2mm OD x 109.2mm L

In Line

1шт.

11

504075145

ELEMENT

Breather Element

1шт.
