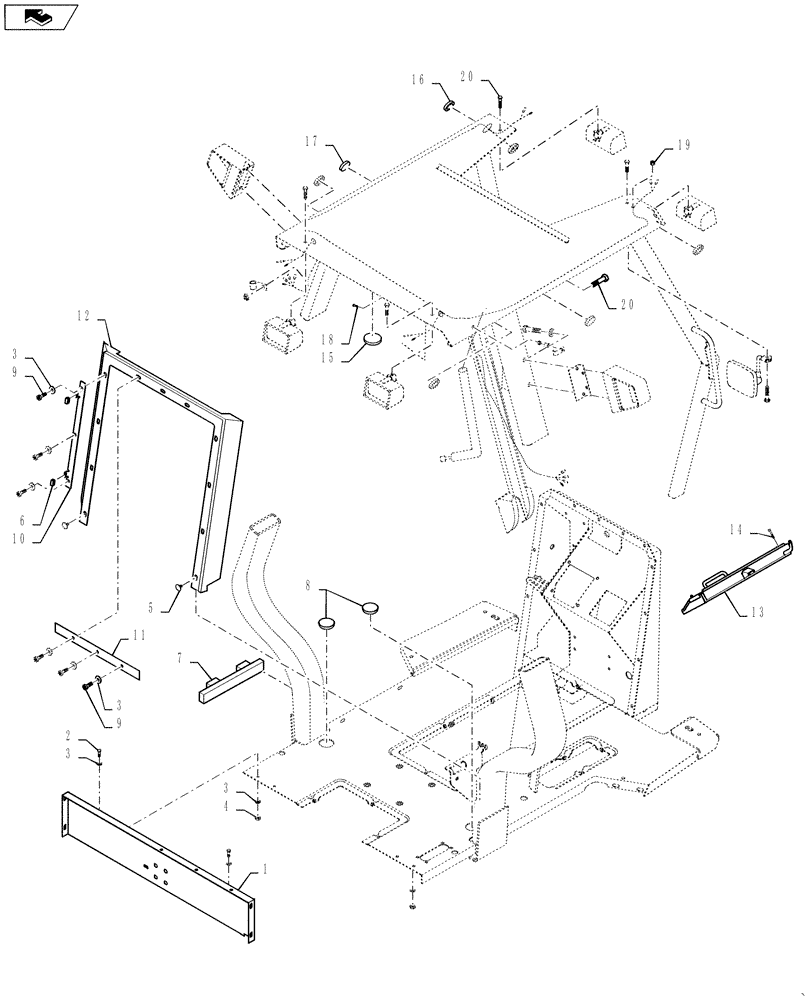

Запчасти Case 570NXT (90.160.CF) - CANOPY MOUNTING PARTS AND PLUGS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

400464A2

PANEL

Lower Rear Closure

1шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

Flat

15шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

5

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

Puch In

2шт.

6

833-40406

NUT,M6, U

4шт.

7

188482A1

SEALING STRIP

Foam

2шт.

8

353-417

PLUG,Dome, 2.000" hole, Nylon

Black Plastic

4шт.

9

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

9шт.

10

137851A1

PLATE

Bar Console Mounting

2шт.

11

143127A1

PLATE

Stiffener Firewall

1шт.

12

404692A1

MOLDING

Firewall

1шт.

13

393009A1

FRAME

Cover Side Lockup

1шт.

14

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

4шт.

15

D93716

PLUG,73.mm ID x 88.9mm OD

3 Inch

3шт.

16

194262A1

GROMMET,25.4mm ID x 57.15mm OD x 12.7mm Thk

2 Inch

4шт.

17

353-417

PLUG,Dome, 2.000" hole, Nylon

4шт.

18

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

1шт.

19

832-10406

NUT,M6 x 1, Cl 8

1шт.

20

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

10-1 5 X 15

5шт.
